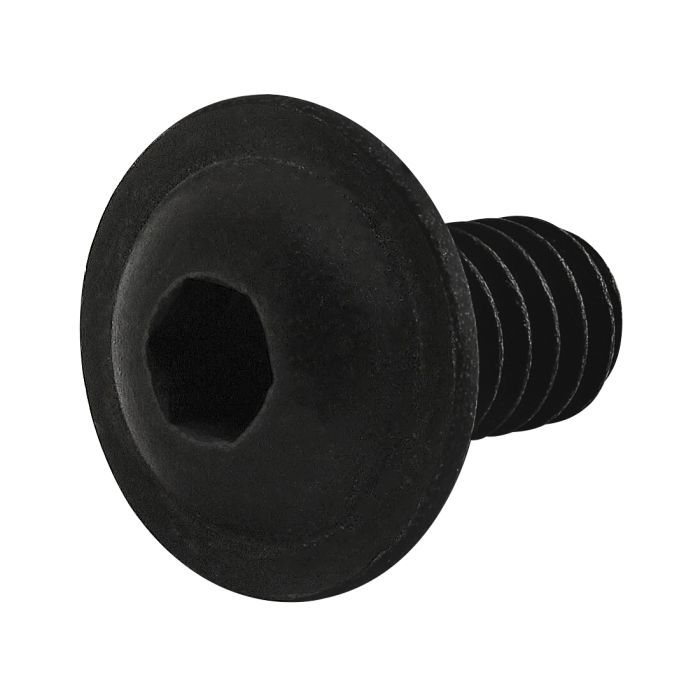

3342

Product Specs

• Product Details
  •

    Series	Fractional
    Material	Steel
    Finish	Zinc
    Color	Black
    A	.560"
    B	5/32
    C	.132"
    D (Length)	.500”
    E	.046"
    F (Thread)	1/4-20
    Thread Length	Full Thread
    Weight	0.009000

• CAD Files

  • ** In accordance with GDPR requirements, in order to download CAD files you will need to sign in to your PartCommunity account below, after clicking Generate. A partCommunity account is separate from your 80/20 account. If you do not have a PartCommunity account, you will need to create a free account.

    Generate
