Threaded Insert
Threaded Insert

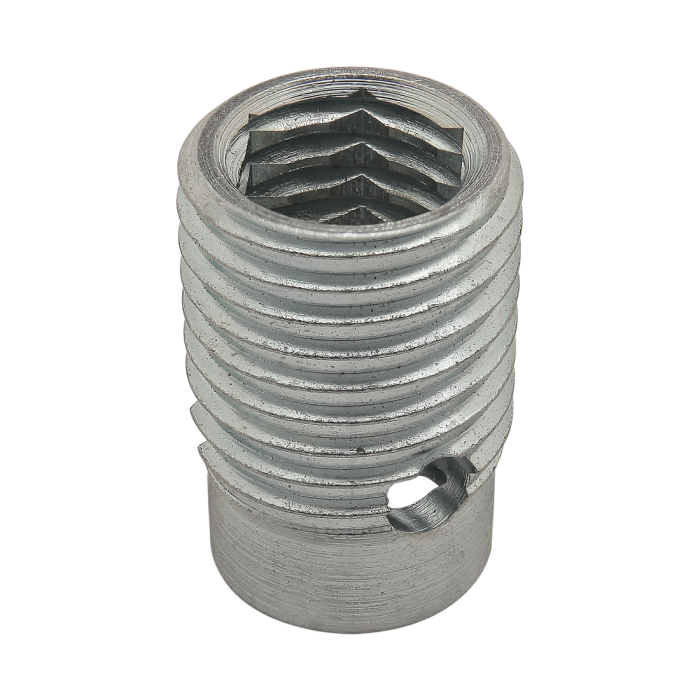

The threaded insert allows 45 series pivot joints to be mounted to a 45 series profile end. The insert is formed through thread rolling, creating strong, uniform, and accurate external threads. It has high tensile, shear, and fatigue strength. Use a 1/4 inch hex tool.
| ESD Safe | Yes |
| Series | Metric |
| Material | Steel |
| Finish | Zinc |
| Color | Bright |
| Process | Metal Forming |
| A | 10.70mm |
| B (Thread) | M8 X 1.25 |
| C (Thread) | 10.70mm |
| D | 6.60mm |
| E (Length) | 16.00mm |
| F | 4.00mm |
| G | 9.70mm |
| H | 6.00mm |
| J | 3.10mm |
| Weight | 0.009000 |
The threaded insert allows 45 series pivot joints to be mounted to a 45 series profile end. The insert is formed through thread rolling, creating strong, uniform, and accurate external threads. It has high tensile, shear, and fatigue strength. Use a 1/4 inch hex tool.
Product Specs
- Product Details
-
ESD Safe Yes Series Metric Material Steel Finish Zinc Color Bright Process Metal Forming A 10.70mm B (Thread) M8 X 1.25 C (Thread) 10.70mm D 6.60mm E (Length) 16.00mm F 4.00mm G 9.70mm H 6.00mm J 3.10mm Weight 0.009000
-
- Description
The threaded insert allows 45 series pivot joints to be mounted to a 45 series profile end. The insert is formed through thread rolling, creating strong, uniform, and accurate external threads. It has high tensile, shear, and fatigue strength. Use a 1/4 inch hex tool.
-
