Horizontal Mount Hook
Horizontal Mount Hook

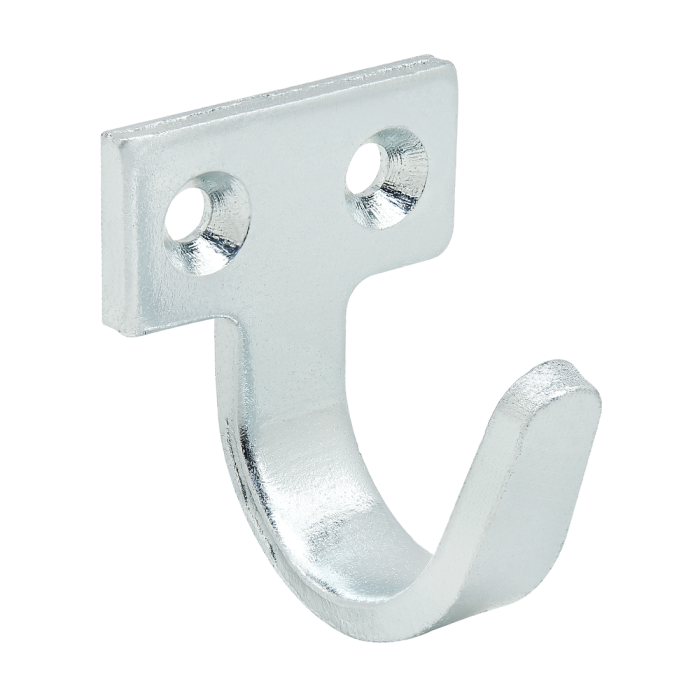

The horizontal mount hook can be used to provide storage and organization. It mounts horizontally to a T-slot profile.
| ESD Safe | Yes |
| Series | 10 Series, 15 Series, 25 Series, 30 Series, 40 Series, 45 Series |
| Material | Steel |
| A | 1.859" |
| B | .750" |
| C | .375" |
| D | 1.515" |
| E | .359" |
| F | .813" |
| G | .204" |
| H | 1.643" |
| J | .496" |
| K | .559" |
| L | 1.194" |
| M | 1.474" |
| N | .175" |
| Weight | 0.113000 |
The horizontal mount hook can be used to provide storage and organization. It mounts horizontally to a T-slot profile.
Mount to T-Slot
| Series | Part Number | Qty | Description |
|---|---|---|---|
 | 3042 | 2 | 10-32 x .375" Button Head Socket Cap Screw (BHSCS) |
| 3375 | 2 | 10-32 Roll-In T-Nut with Flex Handle |
 | 3050 | 2 | 10-32 x .500" Button Head Socket Cap Screw (BHSCS) |
| 3932 | 2 | 15 & 40 Series 10-32 Standard Drop-in T-Nut |
 | 11-5310 | 2 | M5 x 10.00mm Button Head Socket Cap Screw (BHSCS) |
| 25-1956 | 2 | M5 Roll-In T-Nut with Flex Handle |
 | 11-5310 | 2 | M5 x 10.00mm Button Head Socket Cap Screw (BHSCS) |
| 13115 | 2 | 30 Series M5 Standard Drop-in T-Nut |
 | 11-5314 | 2 | M5 x 14.00mm Button Head Socket Cap Screw (BHSCS) |
| 13116 | 2 | 15 & 40 Series M5 Standard Drop-in T-Nut |
 | 11-5316 | 2 | M5 x 16.00mm Button Head Socket Cap Screw (BHSCS) |
| 13127 | 2 | 45 Series M5 Standard Drop-in T-Nut |
