3375

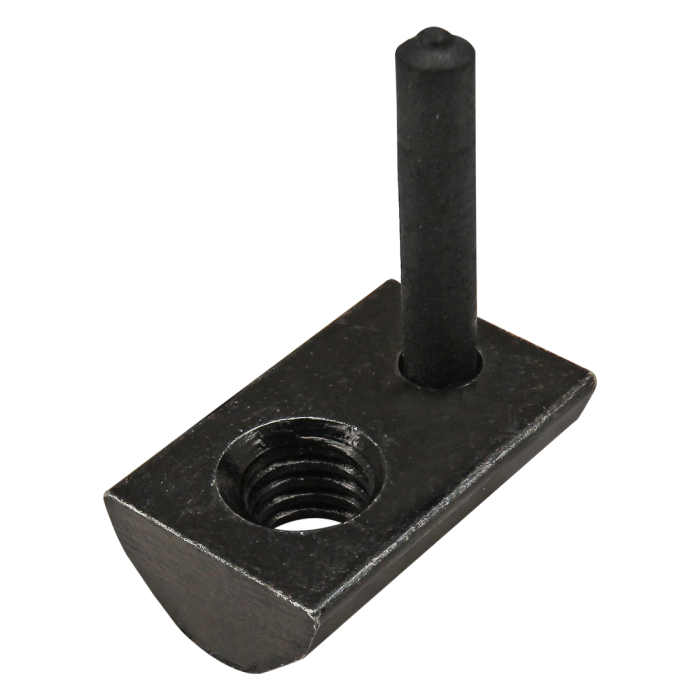

10-32 Roll-In T-Nut with Flex Handle
10-32 Roll-In T-Nut with Flex Handle
The roll-in T-nut with flex handle is a fastening option that loads from either the profile ends or side, which is helpful in applications where the ends are inaccessible. The flex handle sticks out past the profile to make it easy to position and move within the T-slot. It is available with options in size, material, thread, and finish.
....................................................................................................................................................................................................................................................
Price Per Inch
$1.70
....................................................................................................................................................................................................................................................
Total Price
$1.70The roll-in T-nut with flex handle is a fastening option that loads from either the profile ends or side, which is helpful in applications where the ends are inaccessible. The flex handle sticks out past the profile to make it easy to position and move within the T-slot. It is available with options in size, material, thread, and finish.
| Series | 10 Series |
| Material | Steel |
| Grade | 1215 |
| Finish | Zinc |
| Color | Black |
| A | .620" |
| B | .120" |
| C | .201" |
| D | .395" |
| E (Thread) | 10-32 |
| F | .116" |
| G | .200" |
| H | .456" |
| Weight | 0.0080 |
The roll-in T-nut with flex handle is a fastening option that loads from either the profile ends or side, which is helpful in applications where the ends are inaccessible. The flex handle sticks out past the profile to make it easy to position and move within the T-slot. It is available with options in size, material, thread, and finish.
** In accordance with GDPR requirements, in order to download CAD files you will need to sign in to your PartSolutions account below. If you do not have one, you will need to create a free account.
Product Specs
- Product Details
-
Series 10 Series Material Steel Grade 1215 Finish Zinc Color Black A .620" B .120" C .201" D .395" E (Thread) 10-32 F .116" G .200" H .456" Weight 0.0080
-
- Description
The roll-in T-nut with flex handle is a fastening option that loads from either the profile ends or side, which is helpful in applications where the ends are inaccessible. The flex handle sticks out past the profile to make it easy to position and move within the T-slot. It is available with options in size, material, thread, and finish.
