Product Specs

• Product Details
  •

    ESD Safe	No
    Series	30 Series
    Material	Stainless-Steel
    Finish	Stainless
    Process	Machined
    Max Load	60 Nm / 44.0 ft-Lbs.
    A	36.00mm
    B	60.00mm
    C	36.00mm
    D	30.00mm
    E	18.00mm
    F	8.30mm
    G	8.00mm
    H	8.00mm
    Weight	0.210000

• Description

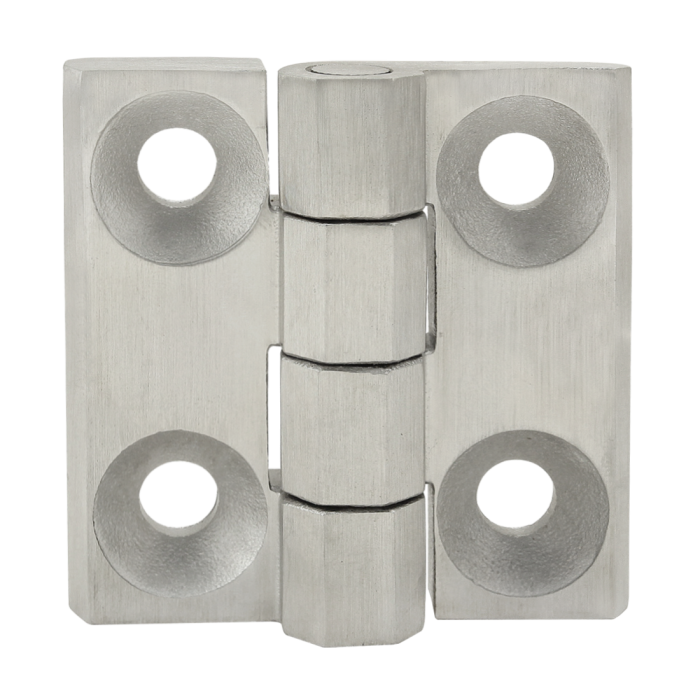

  • The 4 hole - standard stainless steel hinge is made of stainless steel with a plain finish. It is a higher-strength hinge that is commonly used to connect doors and plastic panels to T-slot profiles. The suggested hardware to mount the hinge to a T-slot profile can be found on the "Suggested Hardware" tab.

• Sugg. Hardware

  • Per Leaf Mount to T-slot

    Series	Part Number	Qty	Description
    	75-3585	2	Bolt Assembly: M6 x 14.00mm Black FHSCS with Standard Drop-In T-Nut - Bright Zinc

    Per Leaf Mount to Panel LTE .250" / 6mm

    Series	Part Number	Qty	Description
    	11-8720	2	M8 x 20.00mm Flat Head Socket Cap Screw (FHSCS)
    	11-8065	2	M8 Hex Nut
    	11-6042	2	8.51mm ID Washer
