CO-SLM
Spring Loaded Tow Bar Male
Spring Loaded Tow Bar Male

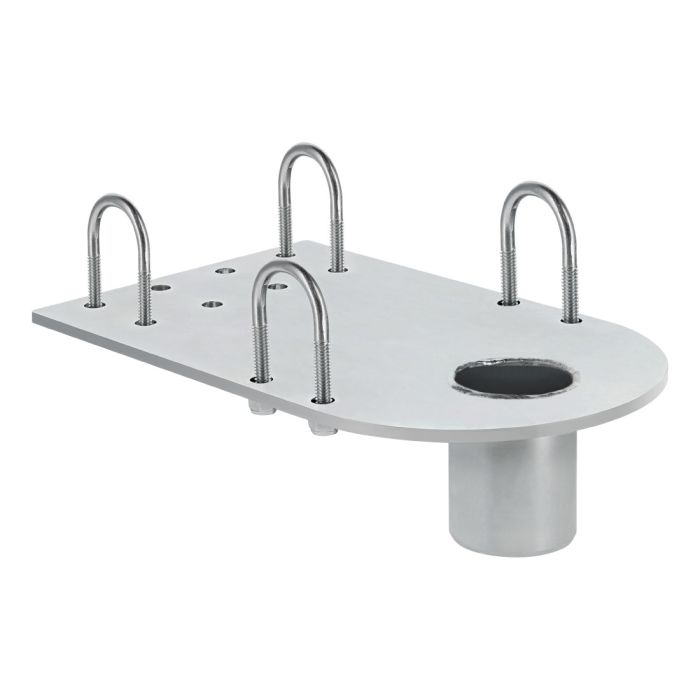

The CO-SLM is a leg wrap towbar, part of a hook and tow system that when combined with CO-SLF becomes a great asset for any company wanting to transition from the typical forklift method to a more lean tugger-train method within their facilities. Ideal for material handling in a variety of industries, hop on the train and incorporate these components to tugger-trains, trolleys, pallet carts and any other type of transportational structure.
- Helps increase productivity
- Reduce forklift-related accidents
- Operates with a max towing capacity of 1,570 lbs
- U-Bolt hardware included to attached to pipe and joint system (Flexpipe)
The CO-SLM is a leg wrap towbar, part of a hook and tow system that when combined with CO-SLF becomes a great asset for any company wanting to transition from the typical forklift method to a more lean tugger-train method within their facilities. Ideal for material handling in a variety of industries, hop on the train and incorporate these components to tugger-trains, trolleys, pallet carts and any other type of transportational structure.
- Helps increase productivity
- Reduce forklift-related accidents
- Operates with a max towing capacity of 1,570 lbs
- U-Bolt hardware included to attached to pipe and joint system (Flexpipe)
| ESD Safe | Yes |
| Series | 10 Series, 15 Series, 25 Series, 30 Series, 40 Series, 45 Series, Pipe |
| Finish | Zinc |
| Material | Steel |
| A | 6.000” (152.4mm) |
| B | 4.875” (123.82mm) |
| C | 2.250” (57.15mm) |
| D | 10.000” (254.00mm) |
| Weight | 3.204000 |
The CO-SLM is a leg wrap towbar, part of a hook and tow system that when combined with CO-SLF becomes a great asset for any company wanting to transition from the typical forklift method to a more lean tugger-train method within their facilities. Ideal for material handling in a variety of industries, hop on the train and incorporate these components to tugger-trains, trolleys, pallet carts and any other type of transportational structure.
- Helps increase productivity
- Reduce forklift-related accidents
- Operates with a max towing capacity of 1,570 lbs
- U-Bolt hardware included to attached to pipe and joint system (Flexpipe)
Mount to T-Slot
| Series | Part Number | Qty | Description |
|---|---|---|---|
  | 11-6512 | 12 | M6 x 12.00mm Socket Head Cap Screw (SHCS) |
| 3873 | 12 | 10 Series M6 Standard Slide-in T-Nut |
| 11-6041 | 12 | 6.51mm ID Washer |
  | 11-6516 | 12 | M6 x 16.00mm Socket Head Cap Screw (SHCS) |
| 3866 | 12 | 15 Series M6 Standard Slide-in T-Nut |
| 11-6041 | 12 | 6.51mm ID Washer |
 | 11-6512 | 12 | M6 x 12.00mm Socket Head Cap Screw (SHCS) |
| 13024 | 12 | M6 Self-Aligning Slide-in T-Nut |
| 11-6041 | 12 | 6.51mm ID Washer |
 | 11-6516 | 12 | M6 x 16.00mm Socket Head Cap Screw (SHCS) |
| 13048 | 12 | M6 Self-Aligning Slide-in T-Nut |
| 11-6041 | 12 | 6.51mm ID Washer |
Product Specs
- Product Details
-
ESD Safe Yes Series 10 Series, 15 Series, 25 Series, 30 Series, 40 Series, 45 Series, Pipe Finish Zinc Material Steel A 6.000” (152.4mm) B 4.875” (123.82mm) C 2.250” (57.15mm) D 10.000” (254.00mm) Weight 3.204000
-
- Description
The CO-SLM is a leg wrap towbar, part of a hook and tow system that when combined with CO-SLF becomes a great asset for any company wanting to transition from the typical forklift method to a more lean tugger-train method within their facilities. Ideal for material handling in a variety of industries, hop on the train and incorporate these components to tugger-trains, trolleys, pallet carts and any other type of transportational structure.
- Helps increase productivity
- Reduce forklift-related accidents
- Operates with a max towing capacity of 1,570 lbs
- U-Bolt hardware included to attached to pipe and joint system (Flexpipe)
-
Sugg. Hardware
Mount to T-Slot
Series Part Number Qty Description 11-6512 12 M6 x 12.00mm Socket Head Cap Screw (SHCS)
3873 12 10 Series M6 Standard Slide-in T-Nut
11-6041 12 6.51mm ID Washer
11-6516 12 M6 x 16.00mm Socket Head Cap Screw (SHCS)
3866 12 15 Series M6 Standard Slide-in T-Nut
11-6041 12 6.51mm ID Washer
11-6512 12 M6 x 12.00mm Socket Head Cap Screw (SHCS)
13024 12 M6 Self-Aligning Slide-in T-Nut 11-6041 12 6.51mm ID Washer
11-6516 12 M6 x 16.00mm Socket Head Cap Screw (SHCS)
13048 12 M6 Self-Aligning Slide-in T-Nut
11-6041 12 6.51mm ID Washer
-
