AF-ILEV

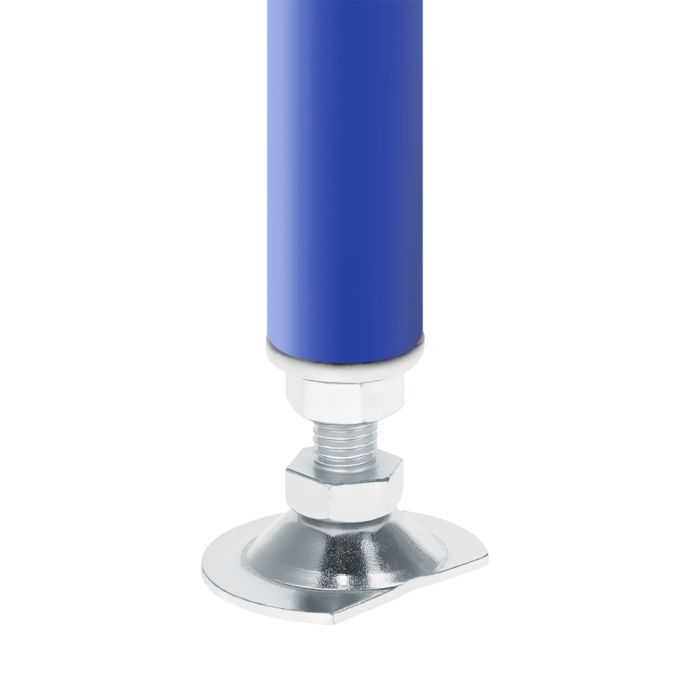

Adjustable Inner Foot
Adjustable Inner Foot
- Not compatible with 2mm thick pipes
- Can be adjusted up to 2 1/2"
- Increases stability for stationary structures
- Quick and easy installation
- Suitable for use in a wide variety of applications - flow-racks, workstations.
- Loading Capacity 485 lbs (220kg)
A Flexpipe Product
| ESD Safe | Yes |
| Weight | 0.321000 |
| Color | Bright |
| Series | Pipe |
| Pipe Mounting | Inner |
| Material | Steel |
| Finish | Zinc |
| Stem Size | M12 x 4.00” (101.60mm) |
| Adjustable Length | 2.500” (63.50mm) |
| Width | 2.000” (50.00mm) |
| Height | 4.750” (120.00mm) |
| Load Capacity | 485 lb 220 kg |
- Not compatible with 2mm thick pipes
- Can be adjusted up to 2 1/2"
- Increases stability for stationary structures
- Quick and easy installation
- Suitable for use in a wide variety of applications - flow-racks, workstations.
- Loading Capacity 485 lbs (220kg)
A Flexpipe Product
Product Specs
- Product Details
-
ESD Safe Yes Weight 0.321000 Color Bright Series Pipe Pipe Mounting Inner Material Steel Finish Zinc Stem Size M12 x 4.00” (101.60mm) Adjustable Length 2.500” (63.50mm) Width 2.000” (50.00mm) Height 4.750” (120.00mm) Load Capacity 485 lb 220 kg
-
- Description
- Not compatible with 2mm thick pipes
- Can be adjusted up to 2 1/2"
- Increases stability for stationary structures
- Quick and easy installation
- Suitable for use in a wide variety of applications - flow-racks, workstations.
- Loading Capacity 485 lbs (220kg)
A Flexpipe Product
-
