9750

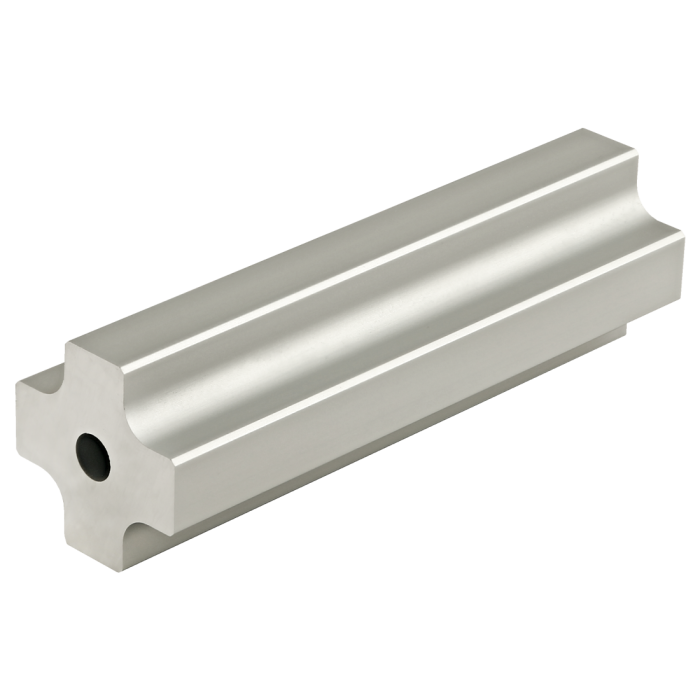

Tube Insert Profile
Tube Insert Profile
The tube insert profile can be cut to your desired length. It is made of aluminum, meaning it is strong, lightweight and corrosion-resistant. It is commonly used to create a custom connector for Ready Tube profiles.
| ESD Safe | Yes |
| Series | Ready Tube |
| Material | Aluminum |
| Grade | 6063-T6 |
| Finish | Anodize |
| Color | Clear |
| Process | Extruded |
| A | 1.225" |
| B | .612" |
| C | .459" |
| D | .262" |
| E | .187" |
| F | .030" x 45° |
| Max Length (inches) | 145.000000 |
| Weight | 0.068000 |
The tube insert profile can be cut to your desired length. It is made of aluminum, meaning it is strong, lightweight and corrosion-resistant. It is commonly used to create a custom connector for Ready Tube profiles.
** In accordance with GDPR requirements, in order to download CAD files you will need to sign in to your PartCommunity account below, after clicking Generate. A partCommunity account is separate from your 80/20 account. If you do not have a PartCommunity account, you will need to create a free account.
Product Specs
- Product Details
-
ESD Safe Yes Series Ready Tube Material Aluminum Grade 6063-T6 Finish Anodize Color Clear Process Extruded A 1.225" B .612" C .459" D .262" E .187" F .030" x 45° Max Length (inches) 145.000000 Weight 0.068000
-
- Description
The tube insert profile can be cut to your desired length. It is made of aluminum, meaning it is strong, lightweight and corrosion-resistant. It is commonly used to create a custom connector for Ready Tube profiles.
-
