Extended Tube Insert
Extended Tube Insert

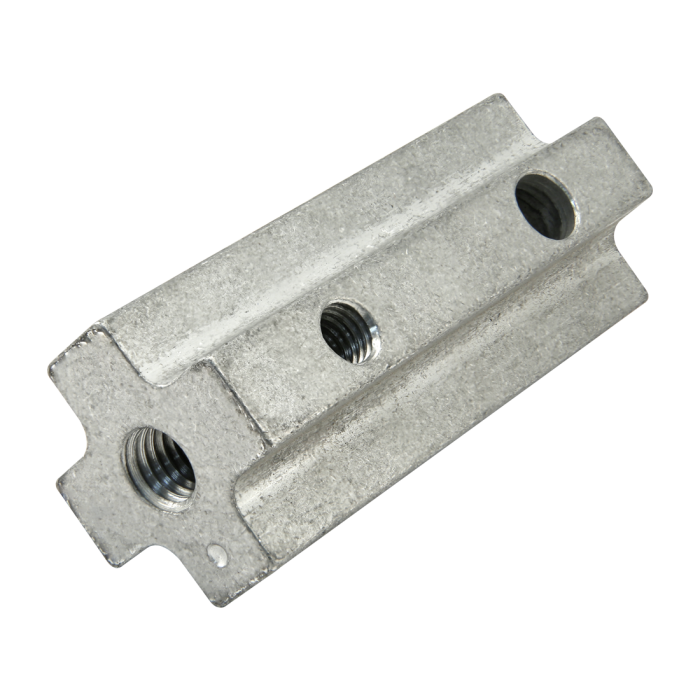

The extended tube insert connects Ready Tube profiles together when their lengths are not divisible by 1.50". It is also commonly used to add casters and leveling feet and requires no additional machining services when used in Ready Tube profiles with predrilled holes. The suggested hardware can be found on the "Suggested Hardware" tab.
The extended tube insert connects Ready Tube profiles together when their lengths are not divisible by 1.50". It is also commonly used to add casters and leveling feet and requires no additional machining services when used in Ready Tube profiles with predrilled holes. The suggested hardware can be found on the "Suggested Hardware" tab.
| ESD Safe | Yes |
| Series | Ready Tube |
| Material | Aluminum |
| Finish | Mill |
| Color | N/A |
| A | 2.940" |
| B | 1.225" |
| C | .332" |
| D (Thread) | 5/16-18 |
| E | .720" |
| F | 2.000" |
| G (Thread) | 5/16-18 |
| Weight | 0.233000 |
The extended tube insert connects Ready Tube profiles together when their lengths are not divisible by 1.50". It is also commonly used to add casters and leveling feet and requires no additional machining services when used in Ready Tube profiles with predrilled holes. The suggested hardware can be found on the "Suggested Hardware" tab.
Mount to RT Profile
| Series | Part Number | Qty | Description | ||
|---|---|---|---|---|---|
 | 3970 | 1 | Bolt Assembly: 5/16-18 x 1.750" Bright Flanged Hex Head Bolt and Flanged Hex Nut - Bright Zinc | ||
| 3753 | 1 | 5/16-18 x 2.000" Flanged Hex Head Bolt (FHHB) | ||
| Or | | 9760 | 1 | Roll Pin |
Product Specs
- Product Details
-
ESD Safe Yes Series Ready Tube Material Aluminum Finish Mill Color N/A A 2.940" B 1.225" C .332" D (Thread) 5/16-18 E .720" F 2.000" G (Thread) 5/16-18 Weight 0.233000
-
- Description
The extended tube insert connects Ready Tube profiles together when their lengths are not divisible by 1.50". It is also commonly used to add casters and leveling feet and requires no additional machining services when used in Ready Tube profiles with predrilled holes. The suggested hardware can be found on the "Suggested Hardware" tab.
- Sugg. Hardware
-
CAD Files
-
CAD Files
-
