9305

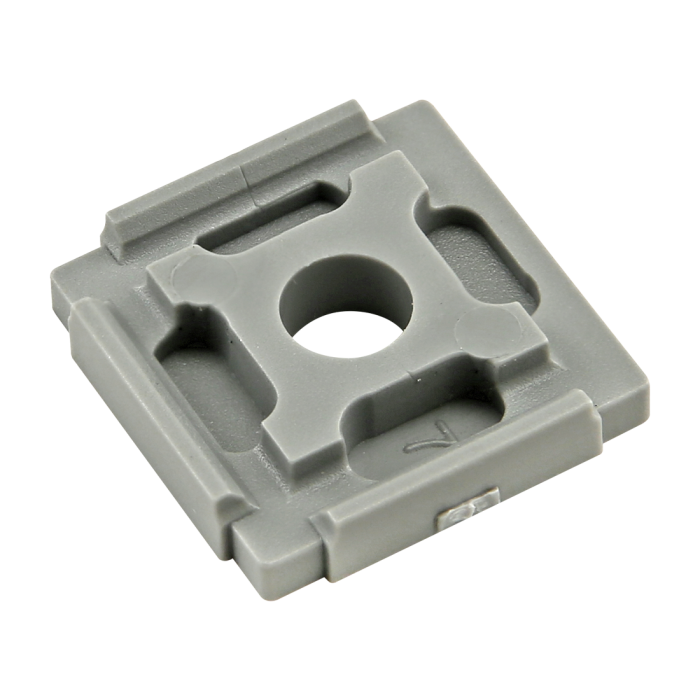

Quick Frame Wire Mesh Fastener
Quick Frame Wire Mesh Fastener
The wire mesh fastener is typically used with Quick Frame profiles to secure .500” x .500” mesh panels. It is made of gray nylon and fastens to a square tube with self-tapping or self-drilling screws. The suggested hardware to mount to a Quick Frame profile can be found on the "Suggested Hardware" tab.
The wire mesh fastener is typically used with Quick Frame profiles to secure .500” x .500” mesh panels. It is made of gray nylon and fastens to a square tube with self-tapping or self-drilling screws. The suggested hardware to mount to a Quick Frame profile can be found on the "Suggested Hardware" tab.
| ESD Safe | No |
| Series | Quick Frame |
| Material | Nylon |
| Process | Molded |
| Finish | Matte |
| Color | Gray |
| A | .632" |
| B | .325" |
| C | .649" |
| D | .396" |
| E | .070" |
| F | .410" |
| G | .172" |
| H | .123" |
| Weight | 0.001000 |
The wire mesh fastener is typically used with Quick Frame profiles to secure .500” x .500” mesh panels. It is made of gray nylon and fastens to a square tube with self-tapping or self-drilling screws. The suggested hardware to mount to a Quick Frame profile can be found on the "Suggested Hardware" tab.
Mount to QF Profile
| Series | Part Number | Qty | Description |
|---|---|---|---|
 | 9301 | 1 | #8-18 x .625" Self Tapping Screw (STS) |
| 9302 | 1 | #8-18 x .675" Self Drilling Screw (SDS) |
Product Specs
- Product Details
-
ESD Safe No Series Quick Frame Material Nylon Process Molded Finish Matte Color Gray A .632" B .325" C .649" D .396" E .070" F .410" G .172" H .123" Weight 0.001000
-
- Description
The wire mesh fastener is typically used with Quick Frame profiles to secure .500” x .500” mesh panels. It is made of gray nylon and fastens to a square tube with self-tapping or self-drilling screws. The suggested hardware to mount to a Quick Frame profile can be found on the "Suggested Hardware" tab.
- Sugg. Hardware
-
