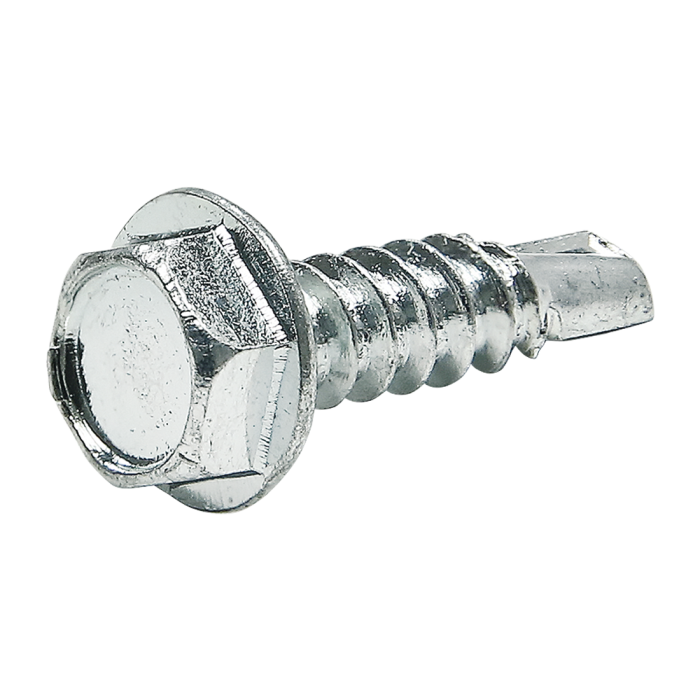

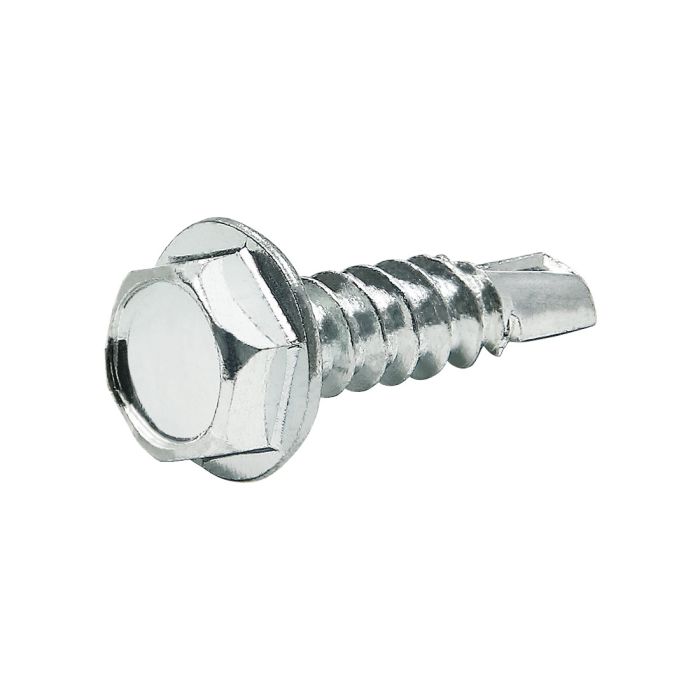

9302

Product Specs

• Product Details
  •

    Series	Fractional
    Material	Steel
    Finish	Zinc
    Color	Bright
    A	.350"
    B	1/4
    C	.141"
    D (Length)	.675"
    E (Thread)	#8-18
    Weight	0.003000
