9300
Quick Frame Straddle Mesh Retainer
Quick Frame Straddle Mesh Retainer

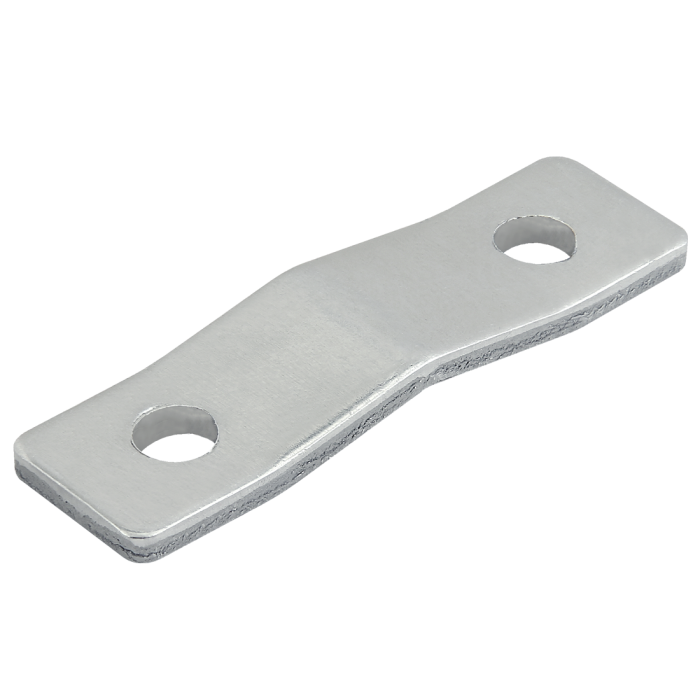

The straddle mesh retainer is typically used with Quick Frame profiles to secure 1.00” x 1.00” mesh panels. It straddles the wire and fastens to a square tube with self-tapping or self-drilling screws. There are options available in aluminum or gray plastic.
....................................................................................................................................................................................................................................................
Total Price
$0.35| Series | Quick Frame |
| Material | Aluminum |
| Process | Machined |
| Finish | Mill |
| Color | No |
| A | .500" |
| B | .250" |
| C | 1.750" |
| D | .313" |
| E | 1.125" |
| F | .188" |
| G | .156" |
| Weight | 0.007000 |
The straddle mesh retainer is typically used with Quick Frame profiles to secure 1.00” x 1.00” mesh panels. It straddles the wire and fastens to a square tube with self-tapping or self-drilling screws. There are options available in aluminum or gray plastic.
Mount to QF Profile
| Series | Part Number | Qty | Description | Select Qty / Add To Cart |
|---|---|---|---|---|
 | 9301 | 2 | #8-18 x .625" Self Tapping Screw (STS) | |
| 9302 | 2 | #8-18 x .675" Self Drilling Screw (SDS) |
** In accordance with GDPR requirements, in order to download CAD files you will need to sign in to your PartSolutions account below. If you do not have one, you will need to create a free account.
Product Specs
- Product Details
-
Series Quick Frame Material Aluminum Process Machined Finish Mill Color No A .500" B .250" C 1.750" D .313" E 1.125" F .188" G .156" Weight 0.007000
-
- Description
The straddle mesh retainer is typically used with Quick Frame profiles to secure 1.00” x 1.00” mesh panels. It straddles the wire and fastens to a square tube with self-tapping or self-drilling screws. There are options available in aluminum or gray plastic.
-
Sugg. Hardware
Mount to QF Profile
Series Part Number Qty Description Select Qty / Add To Cart 9301 2 #8-18 x .625" Self Tapping Screw (STS)
9302 2 #8-18 x .675" Self Drilling Screw (SDS)
- CAD Files
-
** In accordance with GDPR requirements, in order to download CAD files you will need to sign in to your PartSolutions account below. If you do not have one, you will need to create a free account.
-
