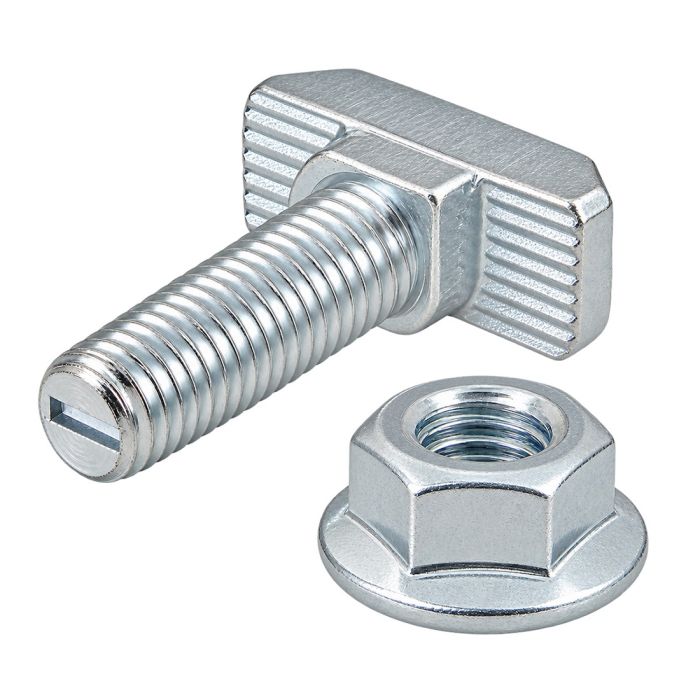

Product Specs

• Product Details
  •

    Series	45 Series
    Material	Steel
    Finish	Zinc
    Color	Bright / Blue

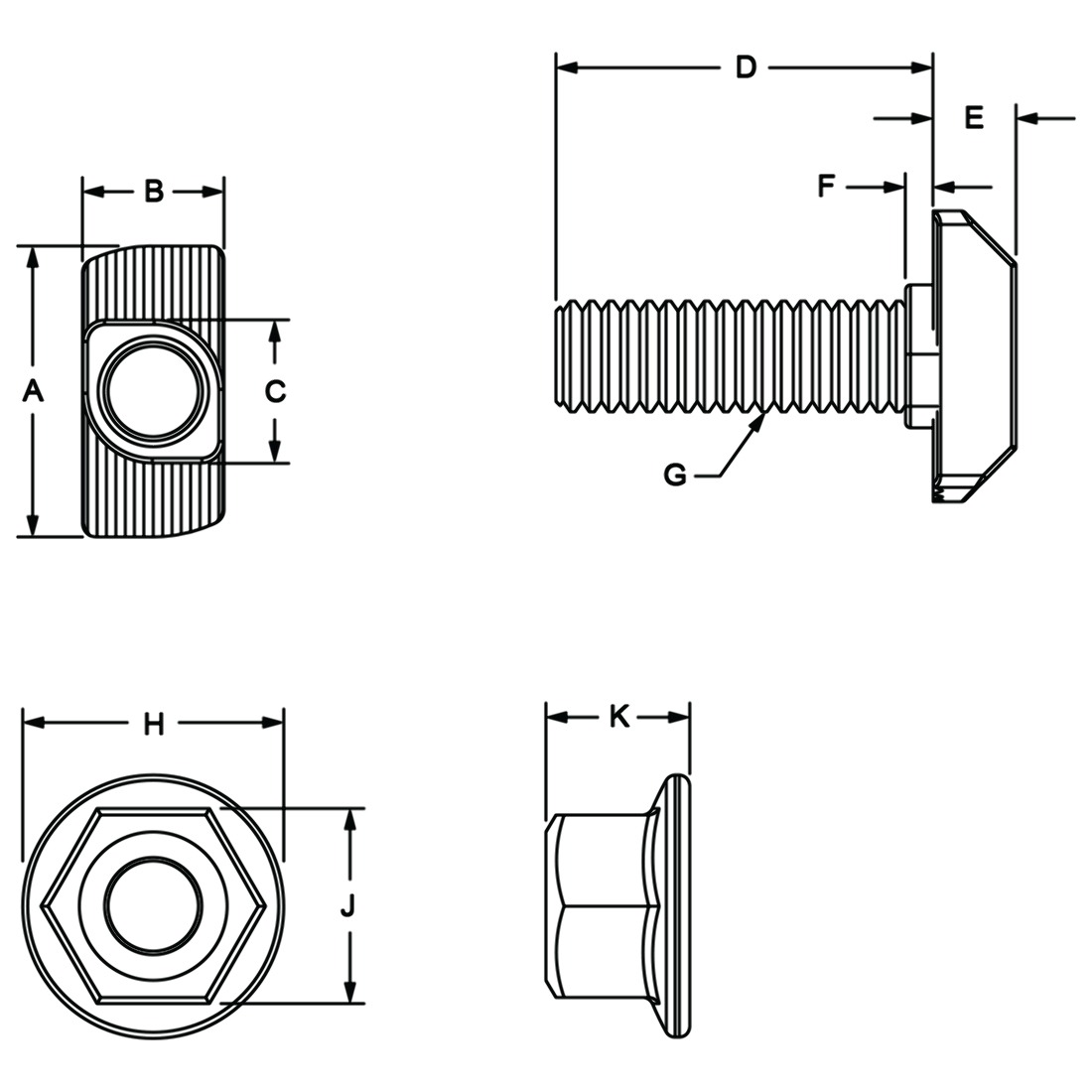

    A	19.00mm
    B	9.70mm
    C	9.70mm
    D	25.00mm
    E	5.80mm
    F	3.00mm
    G	M8 X 1.25
    H	17.90mm
    J	13.00mm
    K	7.80mm
    Weight	0.057000
