65-4490
25 & 40 Series Single Panel Holder
25 & 40 Series Single Panel Holder

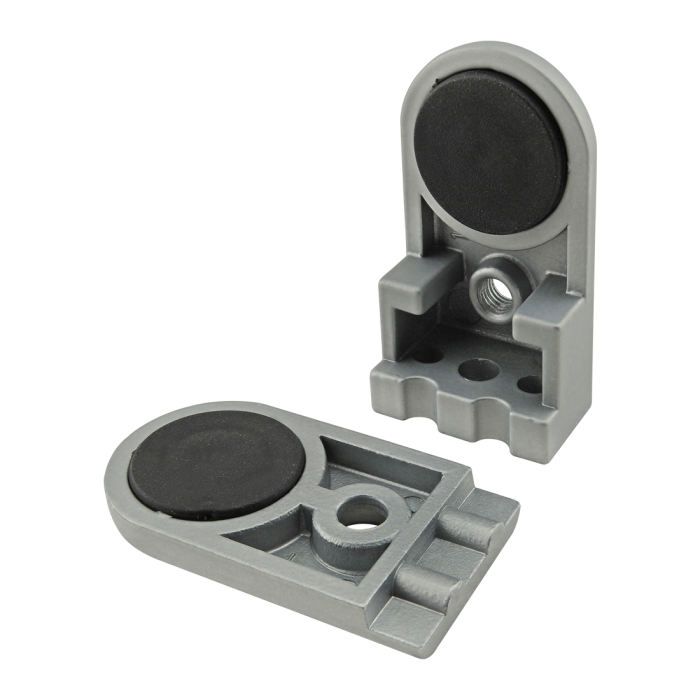

The single holder is zinc die-cast and provides a quick and simple method to secure panels. The pads on the holders increase the strength and help to protect the panel. The single panel holder is frequently used in conjunction with a dual panel holder to form a frameless plastic panel corner. The single panel holder is comprised of two pieces and the hardware to connect them.
The single holder is zinc die-cast and provides a quick and simple method to secure panels. The pads on the holders increase the strength and help to protect the panel. The single panel holder is frequently used in conjunction with a dual panel holder to form a frameless plastic panel corner. The single panel holder is comprised of two pieces and the hardware to connect them.
| ESD Safe | No |
| Series | 25 Series, 40 Series |
| Type | Single Panel |
| Material | Die Cast Zinc |
| Process | Die Cast |
| Finish | Powder Coat |
| A | 45.00mm |
| B | 13.50mm |
| C | 12.50mm |
| D | 25.00mm |
| E | M4 hex |
| F | 8.89mm |
| G | 32.50mm |
| H | 16.50mm |
| J | 20.00mm |
| K | 10.00mm |
| L | 12.50mm |
| M | Ø.5.50mm |
| Weight | 0.169000 |
The single holder is zinc die-cast and provides a quick and simple method to secure panels. The pads on the holders increase the strength and help to protect the panel. The single panel holder is frequently used in conjunction with a dual panel holder to form a frameless plastic panel corner. The single panel holder is comprised of two pieces and the hardware to connect them.
Clamp to T-Slot
| Series | Part Number | Qty | Description |
|---|---|---|---|
 | 11-5312 | 1 | M5 x 12.00mm Button Head Socket Cap Screw (BHSCS) |
| 25-1954 | 1 | 25 Series M5 Standard Slide-in T-Nut |
 | 11-5314 | 1 | M5 x 14.00mm Button Head Socket Cap Screw (BHSCS) |
| 13116 | 1 | 15 & 40 Series M5 Standard Drop-in T-Nut |
