65-2923

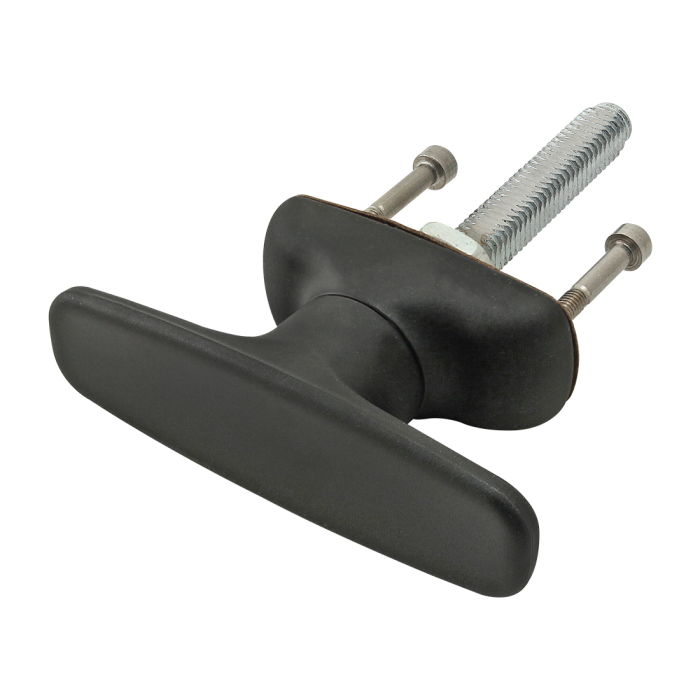

25 & 40 Series Furniture Style Handle
25 & 40 Series Furniture Style Handle
The furniture style handle is available in either chrome-plated or matte black options as well as a "T" or "L" shape. Choices range from locking to unlocking as well as a 90 degree counter-clockwise or clockwise rotation. It requires a furniture style handle profile milling service. Use a pawl kit with the furniture style handle to create a latching connection. All mounting hardware is included.
....................................................................................................................................................................................................................................................
Price Per Inch
$33.90
....................................................................................................................................................................................................................................................
Total Price
$33.90The furniture style handle is available in either chrome-plated or matte black options as well as a "T" or "L" shape. Choices range from locking to unlocking as well as a 90 degree counter-clockwise or clockwise rotation. It requires a furniture style handle profile milling service. Use a pawl kit with the furniture style handle to create a latching connection. All mounting hardware is included.
| Series | 25 Series, 40 Series |
| Material | Die Cast Zinc |
| Finish | Powder Coat |
| Color | Black |
| Rotation to Close | Clockwise |
| A | 25.00mm |
| B | 84.00mm |
| C | 39.00mm |
| D | .80mm |
| E | 59.00mm |
| F | 54.00mm |
| G | M4-0.7 |
| H | Non-Locking |
| Weight | 0.6480 |
The furniture style handle is available in either chrome-plated or matte black options as well as a "T" or "L" shape. Choices range from locking to unlocking as well as a 90 degree counter-clockwise or clockwise rotation. It requires a furniture style handle profile milling service. Use a pawl kit with the furniture style handle to create a latching connection. All mounting hardware is included.
** In accordance with GDPR requirements, in order to download CAD files you will need to sign in to your PartSolutions account below. If you do not have one, you will need to create a free account.
Product Specs
- Product Details
-
Series 25 Series, 40 Series Material Die Cast Zinc Finish Powder Coat Color Black Rotation to Close Clockwise A 25.00mm B 84.00mm C 39.00mm D .80mm E 59.00mm F 54.00mm G M4-0.7 H Non-Locking Weight 0.6480
-
- Description
The furniture style handle is available in either chrome-plated or matte black options as well as a "T" or "L" shape. Choices range from locking to unlocking as well as a 90 degree counter-clockwise or clockwise rotation. It requires a furniture style handle profile milling service. Use a pawl kit with the furniture style handle to create a latching connection. All mounting hardware is included.
