65-2208

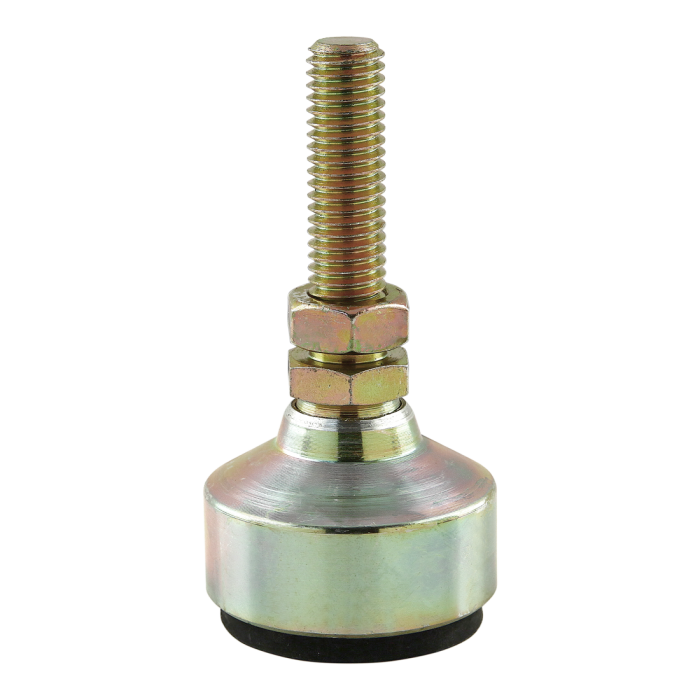

Economy Anti-Vibration Mount: M12 x 51.00mm
Economy Anti-Vibration Mount: M12 x 51.00mm
The economy anti-vibration mount is a foot that pivots 20 degrees to accommodate uneven floors. It has a rubber pad to provide resistance to vibration, making it useful for high-precision projects or computerized machinery. There are options available with load capacities ranging from 200-1250 pounds (23-148 kilograms). It mounts using a base plate and requires an end tap in the profile. Additional Information: The economy anti-vibration mount comes with a jam nut.
The economy anti-vibration mount is a foot that pivots 20 degrees to accommodate uneven floors. It has a rubber pad to provide resistance to vibration, making it useful for high-precision projects or computerized machinery. There are options available with load capacities ranging from 200-1250 pounds (23-148 kilograms). It mounts using a base plate and requires an end tap in the profile. Additional Information: The economy anti-vibration mount comes with a jam nut.
| ESD Safe | No |
| Series | Metric, Ready Tube |
| Material | Steel |
| Grade | 12L14 |
| Process | Machined |
| Finish | Zinc |
| Color | Yellow |
| A | 19.00mm |
| B | 48.00mm |
| C | 95.00mm |
| D | 51.00mm |
| E | 53.00mm |
| F | M12 x 1.75 |
| Load Capacity | 54.00 kg |
| Weight | 0.788000 |
The economy anti-vibration mount is a foot that pivots 20 degrees to accommodate uneven floors. It has a rubber pad to provide resistance to vibration, making it useful for high-precision projects or computerized machinery. There are options available with load capacities ranging from 200-1250 pounds (23-148 kilograms). It mounts using a base plate and requires an end tap in the profile. Additional Information: The economy anti-vibration mount comes with a jam nut.
Product Specs
- Product Details
-
ESD Safe No Series Metric, Ready Tube Material Steel Grade 12L14 Process Machined Finish Zinc Color Yellow A 19.00mm B 48.00mm C 95.00mm D 51.00mm E 53.00mm F M12 x 1.75 Load Capacity 54.00 kg Weight 0.788000
-
- Description
The economy anti-vibration mount is a foot that pivots 20 degrees to accommodate uneven floors. It has a rubber pad to provide resistance to vibration, making it useful for high-precision projects or computerized machinery. There are options available with load capacities ranging from 200-1250 pounds (23-148 kilograms). It mounts using a base plate and requires an end tap in the profile. Additional Information: The economy anti-vibration mount comes with a jam nut.
-
