65-2125

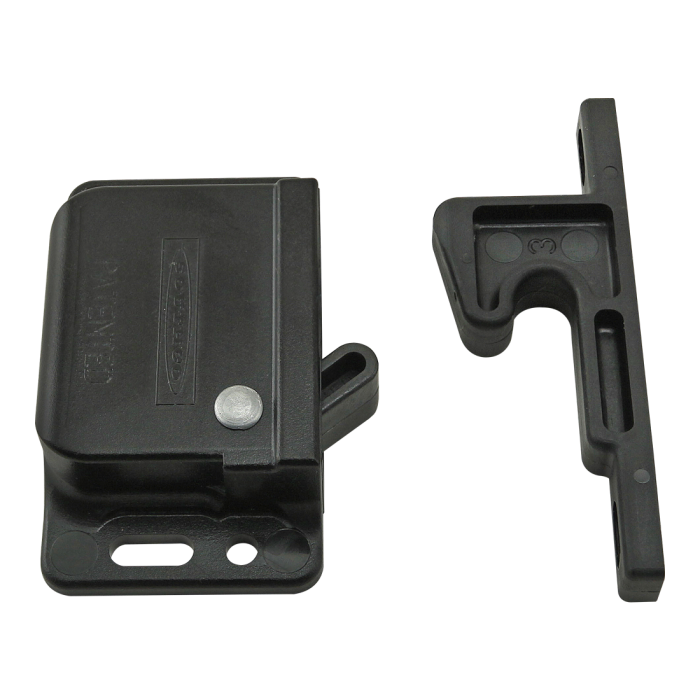

25 & 40 Series Grabber™ Door Catch
25 & 40 Series Grabber™ Door Catch
The Grabber™ door catch is made of corrosion-resistant black ABS with three different pull forces available. It is spring-loaded and mounts to a T-slot with a Grabber™ door catch mounting plate on the inside of an enclosure to create a push to close/pull to open latch. The required hardware to mount the Grabber™ door catch to the plate is included. It requires a Grabber™ door catch clearance machining service which includes the tap.
....................................................................................................................................................................................................................................................
Price Per Inch
$6.25
....................................................................................................................................................................................................................................................
Total Price
$6.25The Grabber™ door catch is made of corrosion-resistant black ABS with three different pull forces available. It is spring-loaded and mounts to a T-slot with a Grabber™ door catch mounting plate on the inside of an enclosure to create a push to close/pull to open latch. The required hardware to mount the Grabber™ door catch to the plate is included. It requires a Grabber™ door catch clearance machining service which includes the tap.
| Series | 25 Series, 40 Series |
| Material | PC / ABS |
| Process | Injection Molded |
| Color | Black |
| A | 48.26mm |
| B | 40.60mm |
| C | 32.65mm |
| D | 28.20mm |
| E | 20.07mm |
| F | 11.20mm |
| G | 3.81mm |
| H | 3.30mm |
| J | 3.30mm x 8.40mm |
| K | 7.62mm |
| L | 55.88mm |
| M | 44.45mm |
| N | 13.70mm |
| Pull Force | 4.60 kg |
| Weight | 0.0340 |
The Grabber™ door catch is made of corrosion-resistant black ABS with three different pull forces available. It is spring-loaded and mounts to a T-slot with a Grabber™ door catch mounting plate on the inside of an enclosure to create a push to close/pull to open latch. The required hardware to mount the Grabber™ door catch to the plate is included. It requires a Grabber™ door catch clearance machining service which includes the tap.
** In accordance with GDPR requirements, in order to download CAD files you will need to sign in to your PartSolutions account below. If you do not have one, you will need to create a free account.
Product Specs
- Product Details
-
Series 25 Series, 40 Series Material PC / ABS Process Injection Molded Color Black A 48.26mm B 40.60mm C 32.65mm D 28.20mm E 20.07mm F 11.20mm G 3.81mm H 3.30mm J 3.30mm x 8.40mm K 7.62mm L 55.88mm M 44.45mm N 13.70mm Pull Force 4.60 kg Weight 0.0340
-
- Description
- The Grabber™ door catch is made of corrosion-resistant black ABS with three different pull forces available. It is spring-loaded and mounts to a T-slot with a Grabber™ door catch mounting plate on the inside of an enclosure to create a push to close/pull to open latch. The required hardware to mount the Grabber™ door catch to the plate is included. It requires a Grabber™ door catch clearance machining service which includes the tap.
