65-2123-Black

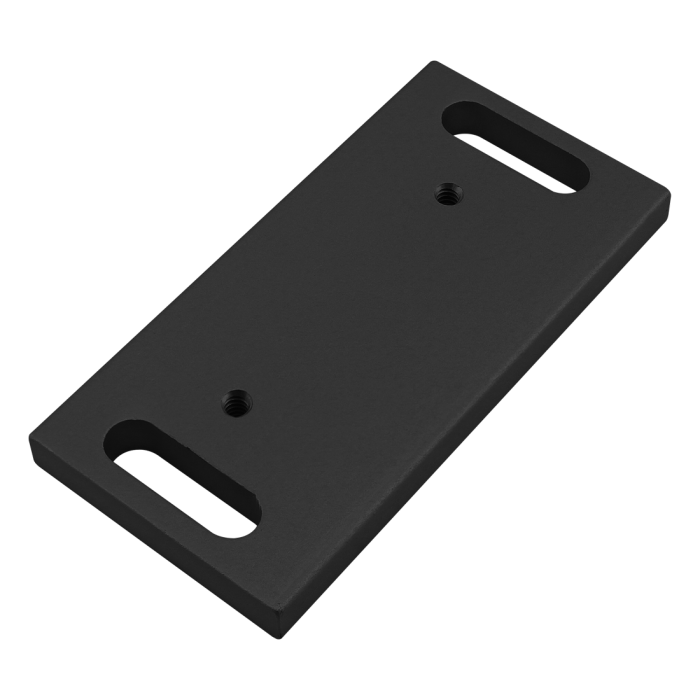

25 & 40 Series Grabber™ Door Catch Mounting Plate
25 & 40 Series Grabber™ Door Catch Mounting Plate
The Grabber™ door catch mounting plate is made of .250" 6105-T5 anodized aluminum and is used to mount the Grabber™ door catch to a T-slot or plastic panel.
....................................................................................................................................................................................................................................................
Total Price
$5.28| Series | 25 Series, 40 Series |
| Material | Aluminum |
| Grade | 6105-T5 |
| Finish | Anodize |
| Color | Black |
| Process | Milled |
| A | 15.88mm |
| B | 17.90mm |
| C | 40.38mm |
| D | 6.53mm |
| E | 10.03mm |
| F | 15.37mm |
| G | #6-32 |
| H | 63.50mm |
| J | 6.35mm |
| K | 37.85mm |
| Weight | 0.097000 |
The Grabber™ door catch mounting plate is made of .250" 6105-T5 anodized aluminum and is used to mount the Grabber™ door catch to a T-slot or plastic panel.
Mount to T-Slot
| Series | Part Number | Qty | Description | Select Qty / Add To Cart |
|---|---|---|---|---|
 | 75-3405 | 2 | Bolt Assembly: M6 x 12.00mm Blue BHSCS with Slide-In Economy T-Nut - Centered Thread - Bright Zinc | |
 | 75-3406 | 2 | Bolt Assembly: M6 x 16.00mm Blue BHSCS with Slide-In Economy T-Nut - Centered Thread - Bright Zinc |
** In accordance with GDPR requirements, in order to download CAD files you will need to sign in to your PartSolutions account below. If you do not have one, you will need to create a free account.
Product Specs
- Product Details
-
Series 25 Series, 40 Series Material Aluminum Grade 6105-T5 Finish Anodize Color Black Process Milled A 15.88mm B 17.90mm C 40.38mm D 6.53mm E 10.03mm F 15.37mm G #6-32 H 63.50mm J 6.35mm K 37.85mm Weight 0.097000
-
- Description
The Grabber™ door catch mounting plate is made of .250" 6105-T5 anodized aluminum and is used to mount the Grabber™ door catch to a T-slot or plastic panel.
-
Sugg. Hardware
Mount to T-Slot
Series Part Number Qty Description Select Qty / Add To Cart 75-3405 2 Bolt Assembly: M6 x 12.00mm Blue BHSCS with Slide-In Economy T-Nut - Centered Thread - Bright Zinc 75-3406 2 Bolt Assembly: M6 x 16.00mm Blue BHSCS with Slide-In Economy T-Nut - Centered Thread - Bright Zinc
