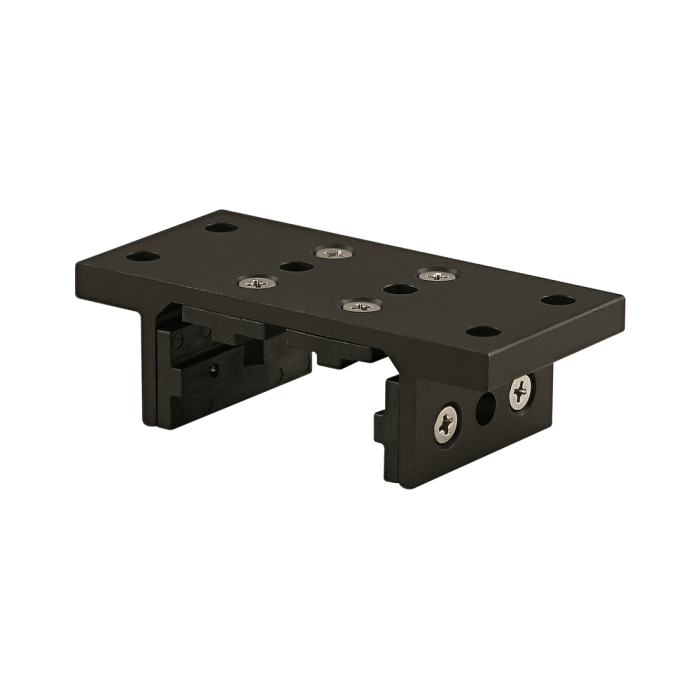

10 Series 4 Slot Mount - Double Flange Short Standard Linear Bearing with Brake Holes
10 Series 4 Slot Mount - Double Flange Short Standard Linear Bearing with Brake Holes
The 4-slot mount – double flange short standard linear bearing with brake holes is typically used in linear motion applications. It houses profiles with a minimum of four open T-slots, has a double flange and is a shorter option. The bearing includes pads, screws and shims; the pads are made of self-lubricating UHMW. All 80/20 bearings are designed for compression loads only and not intended to support hanging loads.
The 4-slot mount – double flange short standard linear bearing with brake holes is typically used in linear motion applications. It houses profiles with a minimum of four open T-slots, has a double flange and is a shorter option. The bearing includes pads, screws and shims; the pads are made of self-lubricating UHMW. All 80/20 bearings are designed for compression loads only and not intended to support hanging loads.
| ESD Safe | No |
| Series | 10 Series |
| Material | Aluminum |
| Grade | 6063-T6 |
| Process | Extruded |
| Finish | Anodize |
| Color | Black |
| A | 1.218" |
| B | .312" |
| C | .906" |
| D | .094" |
| E | 2.630" |
| F | .156" |
| G | 2.318" |
| H | .306" |
| J | .654" |
| K | .156" |
| L | 3.938" |
| M | 1.875" |
| N | .938" |
| P | .438" |
| Q | .344" |
| R | 1.469" |
| S | 1.000" |
| T | #8 FHS |
| U | .265" |
| V | .257" |
| W | 3.250" |
| X | 1.000" |
| Y | 1.000" |
| Z | .438" |
| AA | .406" |
| Weight | 0.244000 |
The 4-slot mount – double flange short standard linear bearing with brake holes is typically used in linear motion applications. It houses profiles with a minimum of four open T-slots, has a double flange and is a shorter option. The bearing includes pads, screws and shims; the pads are made of self-lubricating UHMW. All 80/20 bearings are designed for compression loads only and not intended to support hanging loads.
Product Specs
- Product Details
-
ESD Safe No Series 10 Series Material Aluminum Grade 6063-T6 Process Extruded Finish Anodize Color Black A 1.218" B .312" C .906" D .094" E 2.630" F .156" G 2.318" H .306" J .654" K .156" L 3.938" M 1.875" N .938" P .438" Q .344" R 1.469" S 1.000" T #8 FHS U .265" V .257" W 3.250" X 1.000" Y 1.000" Z .438" AA .406" Weight 0.244000
-
- Description
The 4-slot mount – double flange short standard linear bearing with brake holes is typically used in linear motion applications. It houses profiles with a minimum of four open T-slots, has a double flange and is a shorter option. The bearing includes pads, screws and shims; the pads are made of self-lubricating UHMW. All 80/20 bearings are designed for compression loads only and not intended to support hanging loads.
-
CAD Files
-
CAD Files
-
