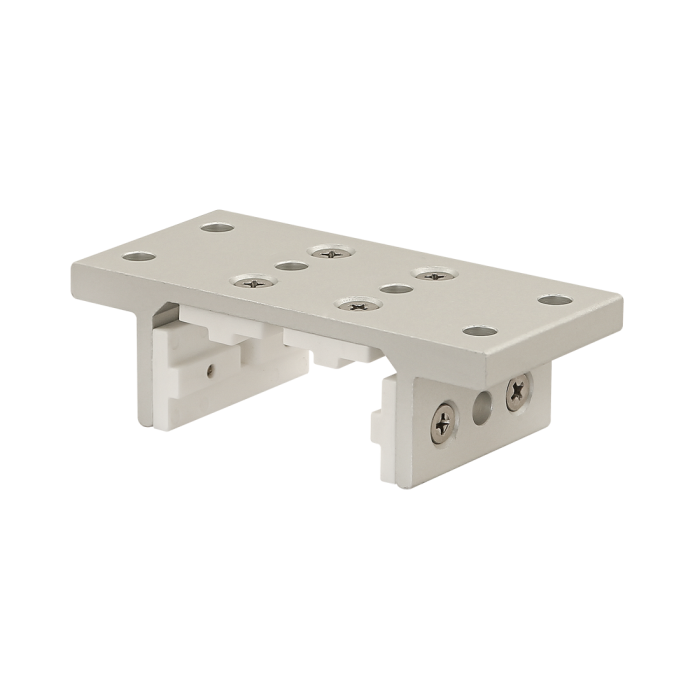

10 Series 4 Slot Mount - Double Flange Short Standard Linear Bearing with Brake Holes
10 Series 4 Slot Mount - Double Flange Short Standard Linear Bearing with Brake Holes
The 4-slot mount – double flange short standard linear bearing with brake holes is typically used in linear motion applications. It houses profiles with a minimum of four open T-slots, has a double flange and is a shorter option. The bearing includes pads, screws and shims; the pads are made of self-lubricating UHMW. All 80/20 bearings are designed for compression loads only and not intended to support hanging loads.
Total Price
$55.95Series | 10 Series |
Material | Aluminum |
Grade | 6105-T5 |
Process | Extruded |
Finish | Anodize |
Color | Clear |
A | 1.218" |
B | .312" |
C | .906" |
D | .094" |
E | 2.630" |
F | .156" |
G | 2.318" |
H | .306" |
J | .654" |
K | .156" |
L | 3.938" |
M | 1.875" |
N | .938" |
P | .438" |
Q | 1.469" |
R | .344" |
S | 1.000" |
T | #8 FHS |
U | .265" |
V | .257" |
W | 3.250" |
X | 1.000" |
Y | 1.000" |
Z | .438" |
AA | .406" |
Weight | 0.244000 |

The 4-slot mount – double flange short standard linear bearing with brake holes is typically used in linear motion applications. It houses profiles with a minimum of four open T-slots, has a double flange and is a shorter option. The bearing includes pads, screws and shims; the pads are made of self-lubricating UHMW. All 80/20 bearings are designed for compression loads only and not intended to support hanging loads.
