4625
Anti-Rotation Plate
Anti-Rotation Plate

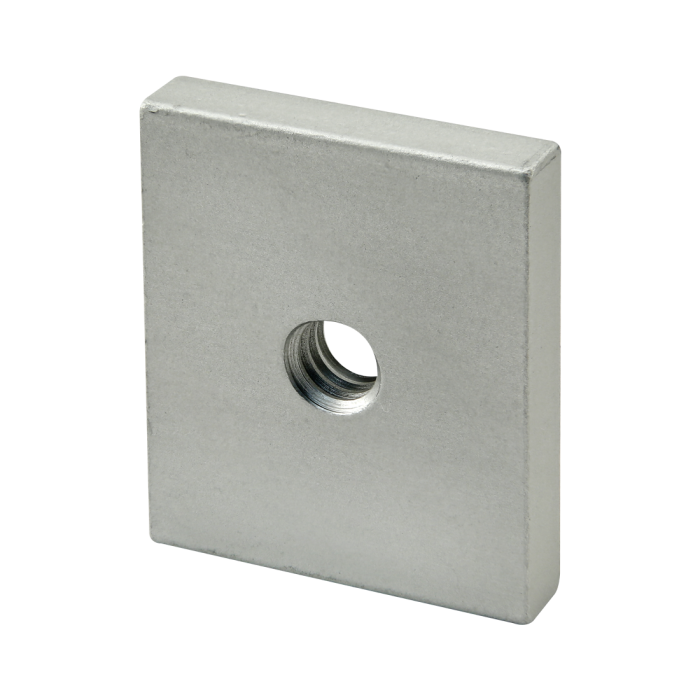

The anti-rotation plate is used with flanged Ready Tube profiles to prevent offset loads from twisting. It is aluminum, making it a strong and durable option. The suggested hardware to mount the plate to a Ready Tube profile can be found on the "Suggested Hardware" tab.
| ESD Safe | Yes |
| Series | Ready Tube |
| Material | Aluminum |
| Finish | Anodize |
| Color | Clear |
| A | 1.230" |
| B | .615" |
| C | 1.490" |
| D | .745" |
| E (Thread) | 5/16-18 |
| F | .250" |
| Weight | 0.044000 |
The anti-rotation plate is used with flanged Ready Tube profiles to prevent offset loads from twisting. It is aluminum, making it a strong and durable option. The suggested hardware to mount the plate to a Ready Tube profile can be found on the "Suggested Hardware" tab.
Mount to RT Profile
| Series | Part Number | Qty | Description |
|---|---|---|---|
  | 3752 | 1 | 5/16-18 x 1.750" Flanged Hex Head Bolt (FHHB) |
Product Specs
- Product Details
-
ESD Safe Yes Series Ready Tube Material Aluminum Finish Anodize Color Clear A 1.230" B .615" C 1.490" D .745" E (Thread) 5/16-18 F .250" Weight 0.044000
-
- Description
The anti-rotation plate is used with flanged Ready Tube profiles to prevent offset loads from twisting. It is aluminum, making it a strong and durable option. The suggested hardware to mount the plate to a Ready Tube profile can be found on the "Suggested Hardware" tab.
-
Sugg. Hardware
Mount to RT Profile
Series Part Number Qty Description 3752 1 5/16-18 x 1.750" Flanged Hex Head Bolt (FHHB)
-
