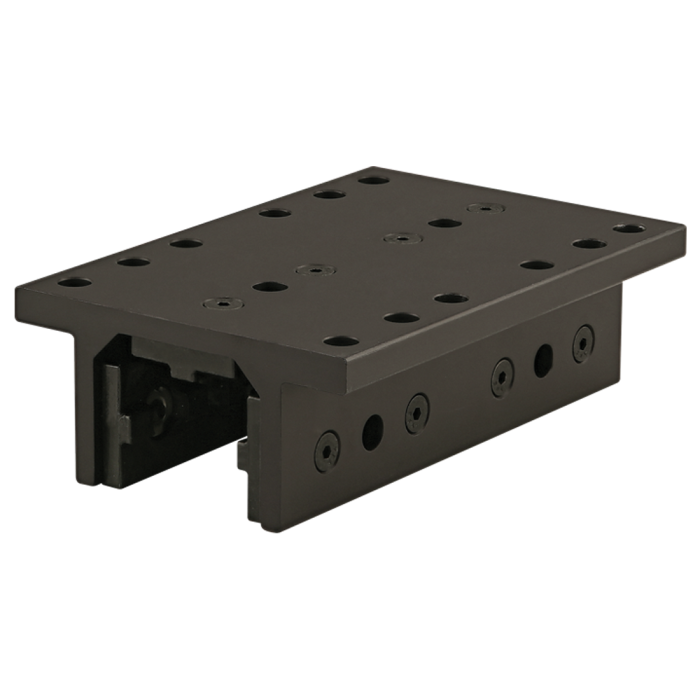

45 Series 3 Slot Mount - Double Flange Long High-Cycle Linear Bearing with Brake Holes
45 Series 3 Slot Mount - Double Flange Long High-Cycle Linear Bearing with Brake Holes
The 3 slot mount – double flange long high-cycle linear bearing with brake holes is typically used in linear motion applications. It contains special threaded inserts in the pads which provide a heavy-duty bearing capable of withstanding repetitive cycles with sudden acceleration and deceleration. The bearing houses profiles with a minimum of three open T-slots, has a double flange and is a longer option. The pads, screws and shims are included; the pads are made of self-lubricating UHMW. All 80/20 bearings are designed for compression loads only and not intended to support hanging loads.
The 3 slot mount – double flange long high-cycle linear bearing with brake holes is typically used in linear motion applications. It contains special threaded inserts in the pads which provide a heavy-duty bearing capable of withstanding repetitive cycles with sudden acceleration and deceleration. The bearing houses profiles with a minimum of three open T-slots, has a double flange and is a longer option. The pads, screws and shims are included; the pads are made of self-lubricating UHMW. All 80/20 bearings are designed for compression loads only and not intended to support hanging loads.
| ESD Safe | No |
| Series | 45 Series |
| Material | Aluminum |
| Grade | 6063-T6 |
| Process | Extruded |
| Finish | Anodize |
| Color | Black |
| A | 56.40mm |
| B | 9.50mm |
| C | 46.90mm |
| D | 2.02mm |
| E | 70.44mm |
| F | 6.40mm |
| G | 57.64mm |
| H | 12.57mm |
| J | 24.78mm |
| K | 7.10mm |
| L | 120.00mm |
| M | 170.00mm |
| N | 40.00mm |
| P | 17.50mm |
| Q | 15.00mm |
| R | 60.00mm |
| S | 45.00mm |
| T | 45.00mm |
| U | #10 FHSCS |
| V | 8.74mm |
| W | 8.33mm |
| X | 90.00mm |
| Y | 45.00mm |
| Z | 17.50mm |
| AA | 20.48mm |
| Weight | 1.893400 |
The 3 slot mount – double flange long high-cycle linear bearing with brake holes is typically used in linear motion applications. It contains special threaded inserts in the pads which provide a heavy-duty bearing capable of withstanding repetitive cycles with sudden acceleration and deceleration. The bearing houses profiles with a minimum of three open T-slots, has a double flange and is a longer option. The pads, screws and shims are included; the pads are made of self-lubricating UHMW. All 80/20 bearings are designed for compression loads only and not intended to support hanging loads.
Product Specs
- Product Details
-
ESD Safe No Series 45 Series Material Aluminum Grade 6063-T6 Process Extruded Finish Anodize Color Black A 56.40mm B 9.50mm C 46.90mm D 2.02mm E 70.44mm F 6.40mm G 57.64mm H 12.57mm J 24.78mm K 7.10mm L 120.00mm M 170.00mm N 40.00mm P 17.50mm Q 15.00mm R 60.00mm S 45.00mm T 45.00mm U #10 FHSCS V 8.74mm W 8.33mm X 90.00mm Y 45.00mm Z 17.50mm AA 20.48mm Weight 1.893400
-
- Description
The 3 slot mount – double flange long high-cycle linear bearing with brake holes is typically used in linear motion applications. It contains special threaded inserts in the pads which provide a heavy-duty bearing capable of withstanding repetitive cycles with sudden acceleration and deceleration. The bearing houses profiles with a minimum of three open T-slots, has a double flange and is a longer option. The pads, screws and shims are included; the pads are made of self-lubricating UHMW. All 80/20 bearings are designed for compression loads only and not intended to support hanging loads.
-
