Product Specs

• Product Details
  •

    Series	10 Series, 15 Series, 25 Series, 30 Series, 40 Series, 45 Series
    Material	Aluminum
    Grade	6105-T5
    Finish	Anodize
    Color	Black
    A	2.000"
    B	1.375"
    C	.313"
    D	.492"
    E	1.750"
    F	.500"
    G	.257"
    H	.188"
    Weight	0.066000

• Description

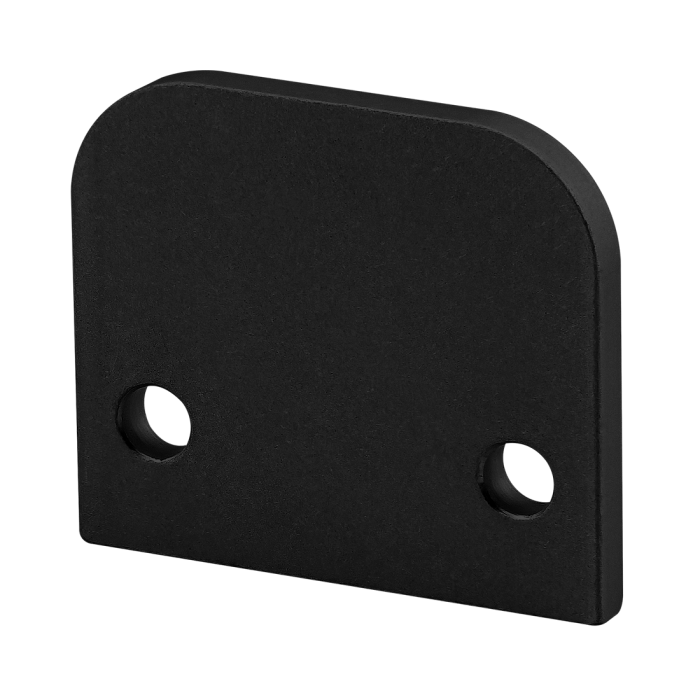

  • The aluminum door stop is a strong and long-lasting option that prevents a door from swinging too far into the frame. It is corrosion-resistant, lending it to both indoor and outdoor use.

• Sugg. Hardware

  • Mount to T-Slot

    Series	Part Number	Qty	Description	Select Qty / Add To Cart
    	3061	2	1/4-20 x .500" Button Head Socket Cap Screw (BHSCS)
    	3376	2	1/4-20 Roll-In T-Nut with Flex Handle
    	3063	2	1/4-20 x .625" Button Head Socket Cap Screw (BHSCS)
    	3933	2	15 & 40 Series 1/4-20 Standard Drop-in T-Nut
    	11-6310	2	M6 x 10.00mm Button Head Socket Cap Screw (BHSCS)
    	25-1966	2	M6 Roll-In T-Nut with Flex Handle
    	11-6312	2	M6 x 12.00mm Button Head Socket Cap Screw (BHSCS)
    	13117	2	30 Series M6 Standard Drop-in T-Nut
    	11-6316	2	M6 x 16.00mm Button Head Socket Cap Screw (BHSCS)
    	13119	2	15 & 40 Series M6 Standard Drop-in T-Nut
    	13129	2	45 Series M6 Standard Drop-in T-Nut

• How To
