40001-CP

Product Specs

• Product Details
  •

    Series	40 Series
    Material	Anodized Aluminum
    Alloy	6061-T6
    Color	Silver
    Length	8.000" (203.2mm)
    Width	8.000" (203.2mm)
    Thickness	0.750" (19.05mm)
    Weight	4.704000

• Description

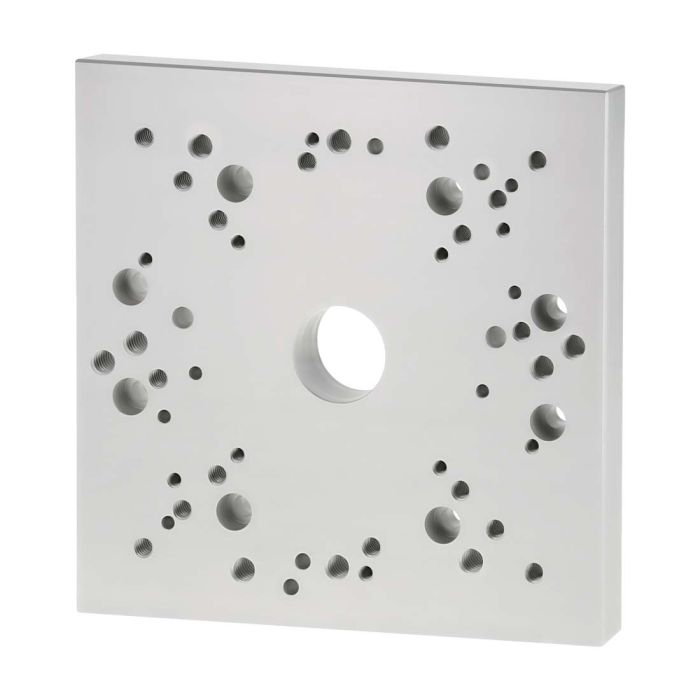

  • The 40001-CP mounting plate is compatible with Universal Robots® - UR3, UR5, UR10, UR16, Fanuc® - CRX-5iA, CRX-10iA, CRX-20iA, Doosan® - A0509, A0912, E0509, M0609, M0617, M1013 and Techman Robot® & Omron® - TM5-700, TM5-900 collaborative robots (cobots).

    • • Precise robot placement with dowel pin holes
      • Compatible with 80/20’s 40 series profiles & parts
      • Countersunk holes for a variety of mounting options
      • Center thru hole for electrical and pneumatic lines
      • Connect directly to 80/20’s robot pedestals

    The suggested mounting hardware can be found on the "Suggested Hardware" tab.

• Sugg. Hardware

  • Mount to T-Slot

    Series	Part Number	Qty	Description
    	17-8520	8	M8 x 20.00mm Socket Head Cap Screw (SHCS)
    	13035	8	M8 Self-Aligning Roll-in T-Nut with Ball Spring

    Mount to Profile End

    Series	Part Number	Qty	Description
    	17-8530	8	M8 x 30.00mm Socket Head Cap Screw (SHCS)
