()40-8016-Black-FB

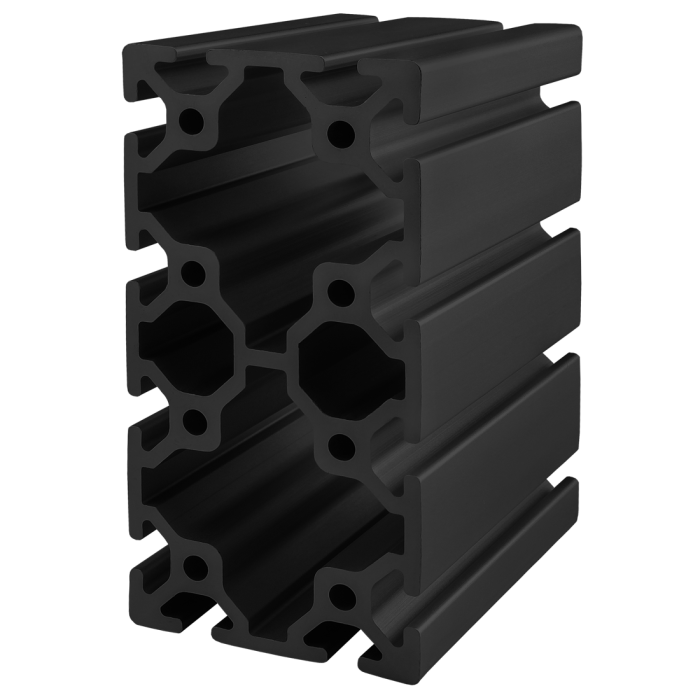

80mm X 160mm T-Slotted Profile - Twelve Open T-Slots
80mm X 160mm T-Slotted Profile - Twelve Open T-Slots
40-8016-Black-FB is a 80mm x 160mm metric 40 series rectangular T-slot profile with twelve open T-slots, two on each 80mm face and four on each 160mm face. The profile is smooth, which makes it resistant to dirt and debris buildup while also being easy to clean. The 40-8016-Black-FB profile is compatible with 40 series fasteners, and has center cavities that can be pressurized up to 1.034 N/mm2 (150 psi). The twelve open T-slots, strength, and ability to pressurize this profile make it a great choice for automation applications, machine frames and workstations.
Price Per Millimeter
$0.292740-8016-Black-FB is a 80mm x 160mm metric 40 series rectangular T-slot profile with twelve open T-slots, two on each 80mm face and four on each 160mm face. The profile is smooth, which makes it resistant to dirt and debris buildup while also being easy to clean. The 40-8016-Black-FB profile is compatible with 40 series fasteners, and has center cavities that can be pressurized up to 1.034 N/mm2 (150 psi). The twelve open T-slots, strength, and ability to pressurize this profile make it a great choice for automation applications, machine frames and workstations.
-
End Taps
-
Counterbores
-
Access Holes
-
Mitercuts
No Applied Machining
- Eight Hole End Taps
M8 x 1.25 D x 31.75mm ↧
Price: $27.22 - Eight Hole End Tap
5/16-18 D x 31.75mm ↧
Price: $22.31
- .295" D accesshole
40-7050 | Price: $2.87
- 0° to 45° Mitercut
Price: $6.85
See here for details
In stock
Total Price
................................................................................................................................Max Length (inches) | 238.188976 |
Series | 40 Series |
Material | Aluminum |
Grade | 6063-T6 |
Finish | Anodize |
Color | Black |
Drop Lock | 2° |
Moment of Inertia - IX | 1111.9793 cm⁴ |
Moment of Inertia - IY | 322.7985 cm⁴ |
Surface Area | 43.490 Sq cm |
Yield Strength | 172.37 N / Sq mm |
Modulus of Elasticity | 68.947.6 N / Sq mm |
Weight lbs | 0.6573 per inch |
Weight | 0.657300 |

40-8016-Black-FB is a 80mm x 160mm metric 40 series rectangular T-slot profile with twelve open T-slots, two on each 80mm face and four on each 160mm face. The profile is smooth, which makes it resistant to dirt and debris buildup while also being easy to clean. The 40-8016-Black-FB profile is compatible with 40 series fasteners, and has center cavities that can be pressurized up to 1.034 N/mm2 (150 psi). The twelve open T-slots, strength, and ability to pressurize this profile make it a great choice for automation applications, machine frames and workstations.
Product Specs
- Product Details
-
Max Length (inches) 238.188976 Series 40 Series Material Aluminum Grade 6063-T6 Finish Anodize Color Black Drop Lock 2° Moment of Inertia - IX 1111.9793 cm^4 Moment of Inertia - IY 322.7985 cm^4 Surface Area 43.490 Sq cm Yield Strength 172.37 N / Sq mm Modulus of Elasticity 68.947.6 N / Sq mm Weight lbs 0.6573 per inch Weight 0.657300
-
- Description
40-8016-Black-FB is a 80mm x 160mm metric 40 series rectangular T-slot profile with twelve open T-slots, two on each 80mm face and four on each 160mm face. The profile is smooth, which makes it resistant to dirt and debris buildup while also being easy to clean. The 40-8016-Black-FB profile is compatible with 40 series fasteners, and has center cavities that can be pressurized up to 1.034 N/mm2 (150 psi). The twelve open T-slots, strength, and ability to pressurize this profile make it a great choice for automation applications, machine frames and workstations.
-
