40-2560-Black

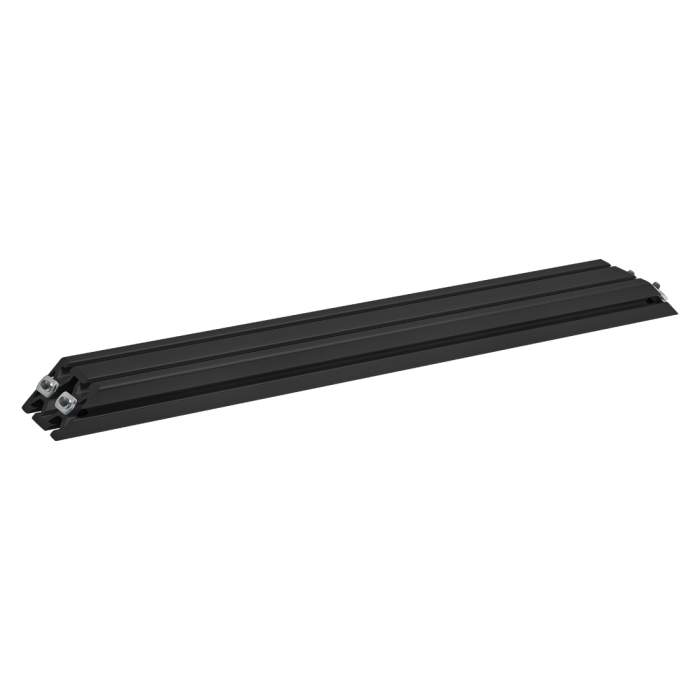

40-4080-Black 45 Degree Support, 640mm Long
40-4080-Black 45 Degree Support, 640mm Long
The 45 degree support assembly includes socket head cap screws, washers and T-nuts. The support assembly is pre-machined with counterbores and a 45 degree miter angle on both ends. This fastening method provides a clean, flush connection and is typically used to reinforce a 90 degree connection. This connection lends itself to applications with heavy loads to minimize beam deflection.
This item requires a longer lead time. Please see Shipping Schedule for "Products Requiring Additional Anodizing".
The 45 degree support assembly includes socket head cap screws, washers and T-nuts. The support assembly is pre-machined with counterbores and a 45 degree miter angle on both ends. This fastening method provides a clean, flush connection and is typically used to reinforce a 90 degree connection. This connection lends itself to applications with heavy loads to minimize beam deflection.
Total Price
................................................................................................................................| Series | 40 Series |
| Profile | 40-4080-Black-FB |
| A | 40.00mm |
| B | 80.00mm |
| C | 640.00mm |
| Weight | 5.150000 |
The 45 degree support assembly includes socket head cap screws, washers and T-nuts. The support assembly is pre-machined with counterbores and a 45 degree miter angle on both ends. This fastening method provides a clean, flush connection and is typically used to reinforce a 90 degree connection. This connection lends itself to applications with heavy loads to minimize beam deflection.
Mount to T-Slot
| Series | Part Number | Qty | Description |
|---|---|---|---|
 | 13-8518 | 4 | M8 x 18.00mm Socket Head Cap Screw (SHCS) |
 | 3838 | 4 | M8 Slide-in Economy T-Nut - Offset Thread |
| 13-6042 | 4 | 8.51mm ID Washer |
** In accordance with GDPR requirements, in order to download CAD files you will need to sign in to your PartCommunity account below, after clicking Generate. A partCommunity account is separate from your 80/20 account. If you do not have a PartCommunity account, you will need to create a free account.
Product Specs
- Product Details
-
Series 40 Series Profile 40-4080-Black-FB A 40.00mm B 80.00mm C 640.00mm Weight 5.150000
-
- Description
The 45 degree support assembly includes socket head cap screws, washers and T-nuts. The support assembly is pre-machined with counterbores and a 45 degree miter angle on both ends. This fastening method provides a clean, flush connection and is typically used to reinforce a 90 degree connection. This connection lends itself to applications with heavy loads to minimize beam deflection.
-
Incl. Hardware
Mount to T-Slot
Series Part Number Qty Description 13-8518 4 M8 x 18.00mm Socket Head Cap Screw (SHCS)
3838 4 M8 Slide-in Economy T-Nut - Offset Thread 13-6042 4 8.51mm ID Washer
