40-2180

Product Specs

• Product Details
  •

    ESD Safe	Yes
    Series	40 Series
    Material	Aluminum
    Grade	6063-T6
    Process	Milled
    Finish	Anodize
    Color	Clear
    A	106.68mm
    B	60.00mm
    C	40.00mm
    D	20.00mm
    E	80.00mm
    F	40.00mm
    G	20.00mm
    H	M8 SHCS
    J	M12 x 1.75
    K	13.50mm
    L	40.00mm
    M	19.00mm
    N	120.00mm
    Weight	1.005000

• Description

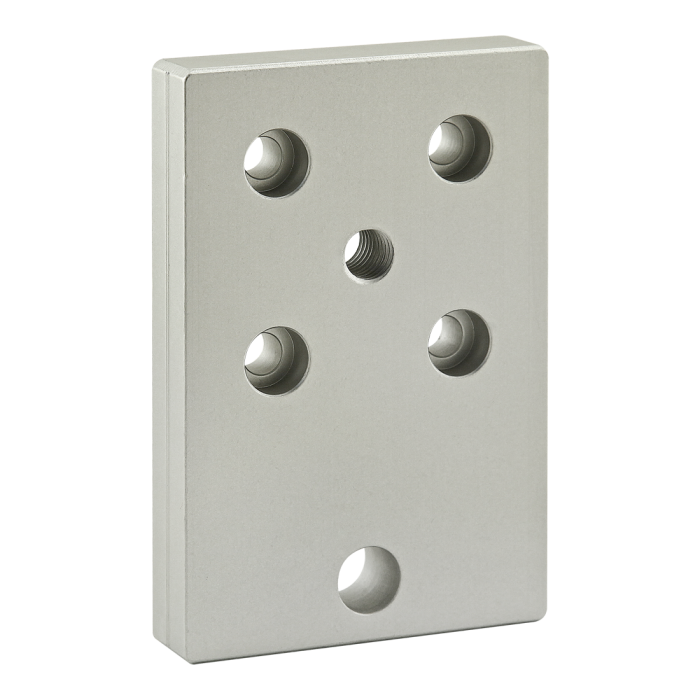

  • The 6 hole – leveling anchoring base plate is made of anodized aluminum to withstand daily use and wear and tear. It mounts to a profile end and provides an offset hole that allows a leveling foot and floor anchor to be used at the same time. A tap is required to mount to the profile end.

• Sugg. Hardware

  • Mount to T-Slot

    Series	Part Number	Qty	Description
    	75-3430	4	Bolt Assembly: M8 x 20.00mm Blue SHCS with Slide-In Economy T-Nut - Offset Thread - Bright Zinc

    Mount to Profile End

    Series	Part Number	Qty	Description
    	13-8525	4	M8 x 25.00mm Socket Head Cap Screw (SHCS)
