40-2148

Product Specs

• Product Details
  •

    ESD Safe	Yes
    Series	40 Series
    Material	Aluminum
    Grade	6063-T6
    Process	Milled
    Finish	Anodize
    Color	Clear
    A	30.00mm
    B	8.73mm
    C	16.68mm
    D	158.00mm
    E	133.34mm
    F	92.00mm
    G	40.00mm
    H	82.54mm
    J	66.64mm
    K	40.00mm
    L	M8 SHCS
    M	M10 x 1.50
    N	33.00mm
    P	19.00mm
    Q	12.33mm
    R	19.00mm
    S	100.00mm
    Weight	1.633000

• Description

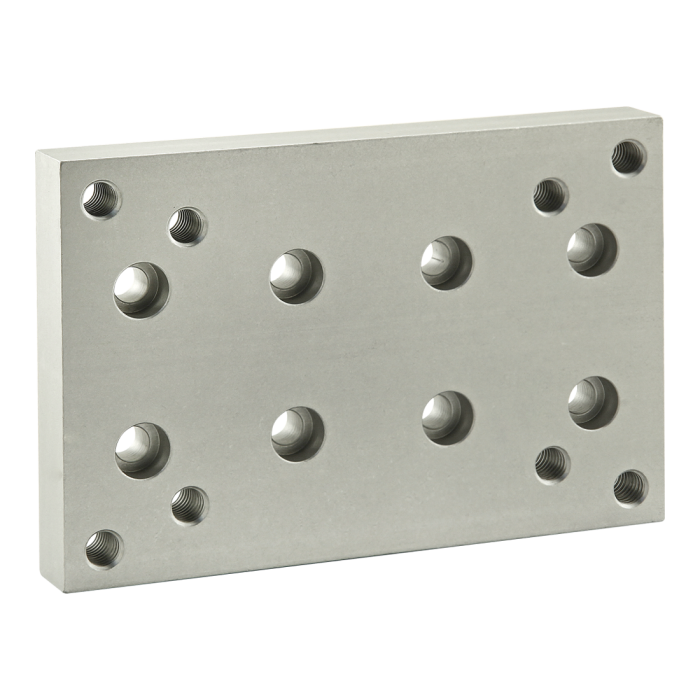

  • The position floor lock base plate is made of anodized aluminum to withstand daily use and wear and tear. It bolts to a profile end or side and is commonly used to mount position floor locks for an added layer of strength and durability. It requires a tap to mount to a profile end.
• Sugg. Hardware

  • Mount to T-Slot

    Series	Part Number	Qty	Description
    	75-3430	4 To 8	Bolt Assembly: M8 x 20.00mm Blue SHCS with Slide-In Economy T-Nut - Offset Thread - Bright Zinc

    Mount to Profile End

    Series	Part Number	Qty	Description
    	13-8530	4 To 8	M8 x 30.00mm Socket Head Cap Screw (SHCS)

• CAD Files
• CAD Files
  • CAD Download
