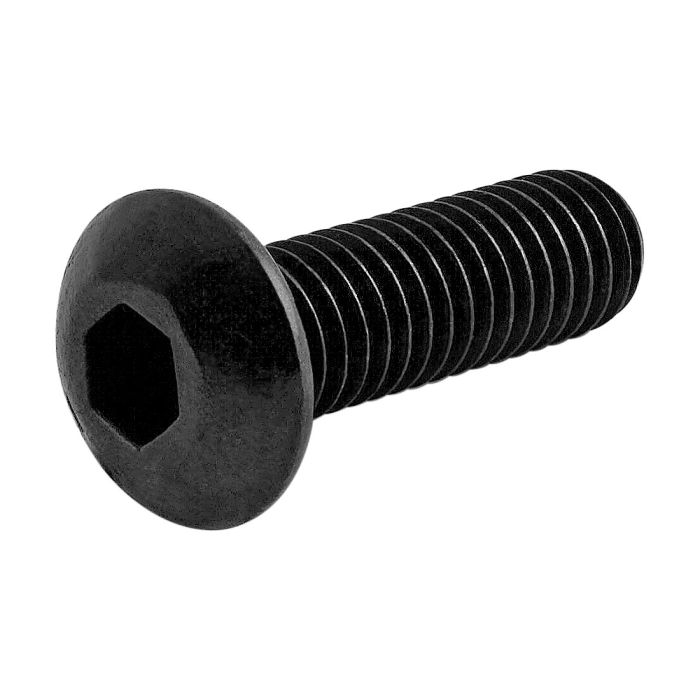

Product Specs

• Product Details
  •

    Series	Fractional
    Material	Steel
    Finish	Zinc
    Color	Black
    A	.354"
    B	1/8
    C	.096”
    D (Length)	.625”
    E (Thread)	10-32
    Thread Length	Full Thread
    Weight	0.006000

• CAD Files

  • ** In accordance with GDPR requirements, in order to download CAD files you will need to sign in to your PartCommunity account below, after clicking Generate. A partCommunity account is separate from your 80/20 account. If you do not have a PartCommunity account, you will need to create a free account.

    Generate
