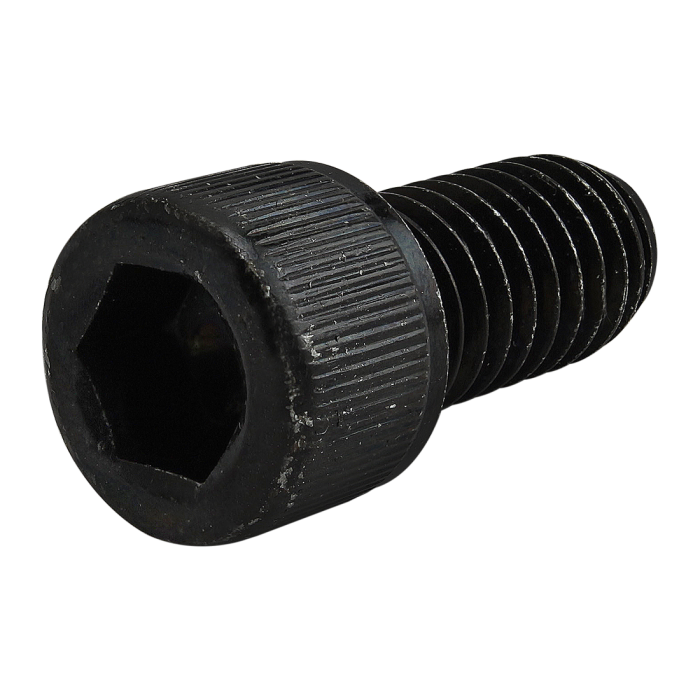

Product Specs

• Product Details
  •

    Series	Fractional
    Material	Steel
    Finish	Zinc
    Color	Black
    A	.556"
    B	5/16
    C	.372"
    D (Length)	.750"
    E (Thread)	3/8-16
    Thread Length	Full Thread
    Weight	0.037000
