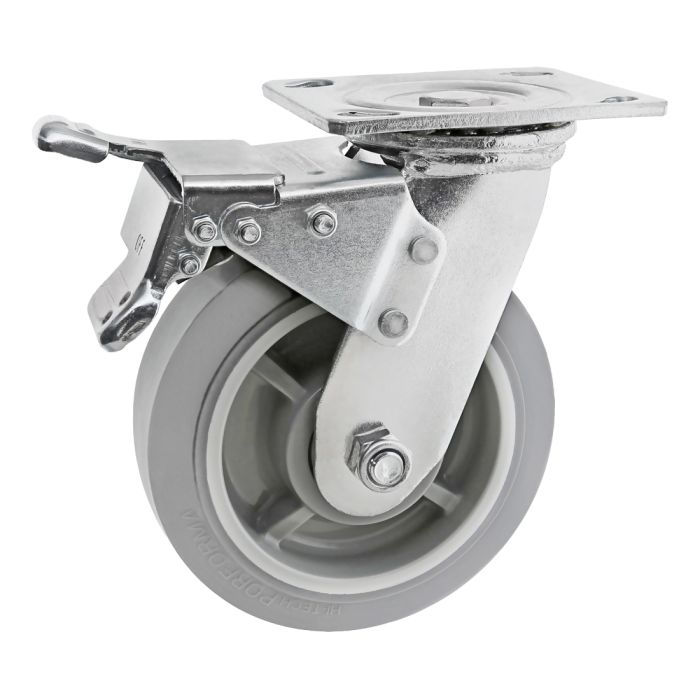

Heavy-Duty Flange Mount Swivel Caster w Brake: 6.00" (152.4mm)
Heavy-Duty Flange Mount Swivel Caster w Brake: 6.00" (152.4mm)
The heavy-duty flange mount swivel caster is a foot that adds mobility to an application and commonly mounts to the T-slot profile end or side using a base plate. The swivel enables easy movement and pivot turns while the design allows for easy access to lubrication fittings. It is a heavy-duty and oil resistant option with a higher ground clearance. It's ideal for use in industrial settings such as large workstations and material handling solutions.
The heavy-duty flange mount swivel caster is a foot that adds mobility to an application and commonly mounts to the T-slot profile end or side using a base plate. The swivel enables easy movement and pivot turns while the design allows for easy access to lubrication fittings. It is a heavy-duty and oil resistant option with a higher ground clearance. It's ideal for use in industrial settings such as large workstations and material handling solutions.
| ESD Safe | No |
| Series | Fractional, Metric |
| Material | Steel / Rubber |
| Finish | Zinc |
| Color | Gray |
| Brake | Yes |
| A | 4.488" (114.00mm) |
| B | 3.307" (84.00mm) |
| C | 2.861" (72.69mm) |
| D | 3.937" (100.00mm) |
| E | 3.000" (76.20mm) |
| F | 2.755" (70.00mm) |
| G | 0.393" (10.00mm) |
| H | 7.480" (190.00mm) |
| J | 3.875" (98.43mm) |
| K | 5.905" (150.00 |
| Load Height | 7.480" (190.00mm) |
| Load Capacity | 500 lbs (226.79 kg) |
| Weight | 5.940000 |
The heavy-duty flange mount swivel caster is a foot that adds mobility to an application and commonly mounts to the T-slot profile end or side using a base plate. The swivel enables easy movement and pivot turns while the design allows for easy access to lubrication fittings. It is a heavy-duty and oil resistant option with a higher ground clearance. It's ideal for use in industrial settings such as large workstations and material handling solutions.
Mount to Base Plate
| Series | Part Number | Qty | Description |
|---|---|---|---|
 | 3125 | 4 | 3/8-16 x .750" Socket Head Cap Screw (SHCS) |
 | 13-1520 | 4 | M10 x 20.00mm Socket Head Cap Screw (SHCS) |
Product Specs
- Product Details
-
ESD Safe No Series Fractional, Metric Material Steel / Rubber Finish Zinc Color Gray Brake Yes A 4.488" (114.00mm) B 3.307" (84.00mm) C 2.861" (72.69mm) D 3.937" (100.00mm) E 3.000" (76.20mm) F 2.755" (70.00mm) G 0.393" (10.00mm) H 7.480" (190.00mm) J 3.875" (98.43mm) K 5.905" (150.00 Load Height 7.480" (190.00mm) Load Capacity 500 lbs (226.79 kg) Weight 5.940000
-
- Description
The heavy-duty flange mount swivel caster is a foot that adds mobility to an application and commonly mounts to the T-slot profile end or side using a base plate. The swivel enables easy movement and pivot turns while the design allows for easy access to lubrication fittings. It is a heavy-duty and oil resistant option with a higher ground clearance. It's ideal for use in industrial settings such as large workstations and material handling solutions.
- Sugg. Hardware
-
