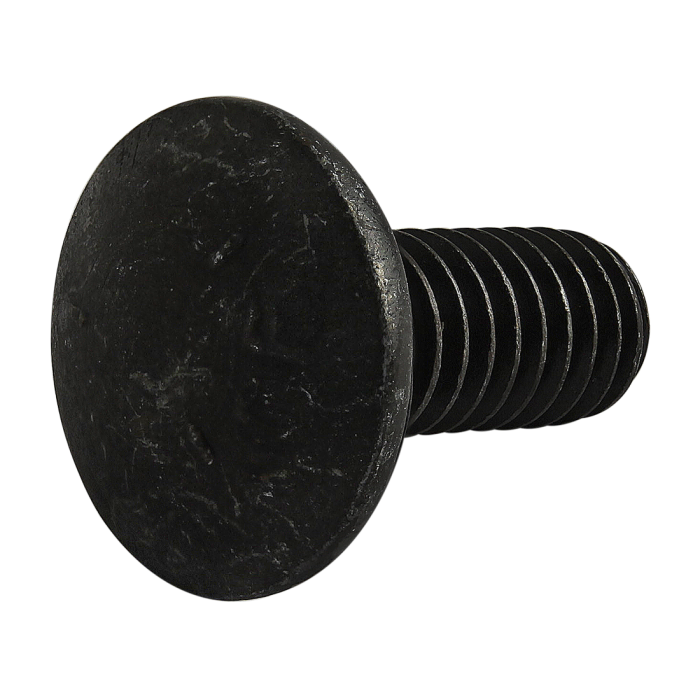

Product Specs

• Product Details
  •

    Series	10 Series
    Material	Steel
    Finish	Zinc
    Color	Black
    A	.875"
    B	.140"
    C (Thread)	1/4-20
    D (Length)	.750"
    E	500"
    F	.235"
    Weight	0.013000
