25-2798

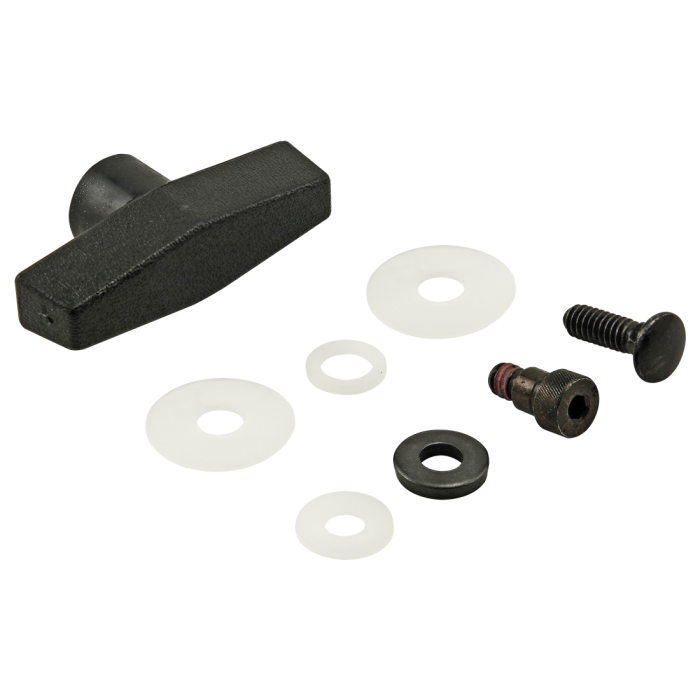

25 Series "T" Handle Kit - Dynamic Pivot
25 Series "T" Handle Kit - Dynamic Pivot
The "T" handle kit adds an adjustable stop to a dynamic pivot by securing it into a semi-permanent position and adds a grip to aid with adjustments. All mounting hardware is included.
| ESD Safe | No |
| Series | 25 Series |
| Material | Steel / Polyproylene |
| Finish | Zinc / Matte |
| Color | Black |
| A | 49.28mm |
| B | 63.26mm |
| C | 36.20mm |
| D | 19.05mm |
| E | 3.51mm |
| F | 12.70mm |
| Weight | 0.116000 |
The "T" handle kit adds an adjustable stop to a dynamic pivot by securing it into a semi-permanent position and adds a grip to aid with adjustments. All mounting hardware is included.
** In accordance with GDPR requirements, in order to download CAD files you will need to sign in to your PartCommunity account below, after clicking Generate. A partCommunity account is separate from your 80/20 account. If you do not have a PartCommunity account, you will need to create a free account.
Product Specs
- Product Details
-
ESD Safe No Series 25 Series Material Steel / Polyproylene Finish Zinc / Matte Color Black A 49.28mm B 63.26mm C 36.20mm D 19.05mm E 3.51mm F 12.70mm Weight 0.116000
-
- Description
The "T" handle kit adds an adjustable stop to a dynamic pivot by securing it into a semi-permanent position and adds a grip to aid with adjustments. All mounting hardware is included.
-
