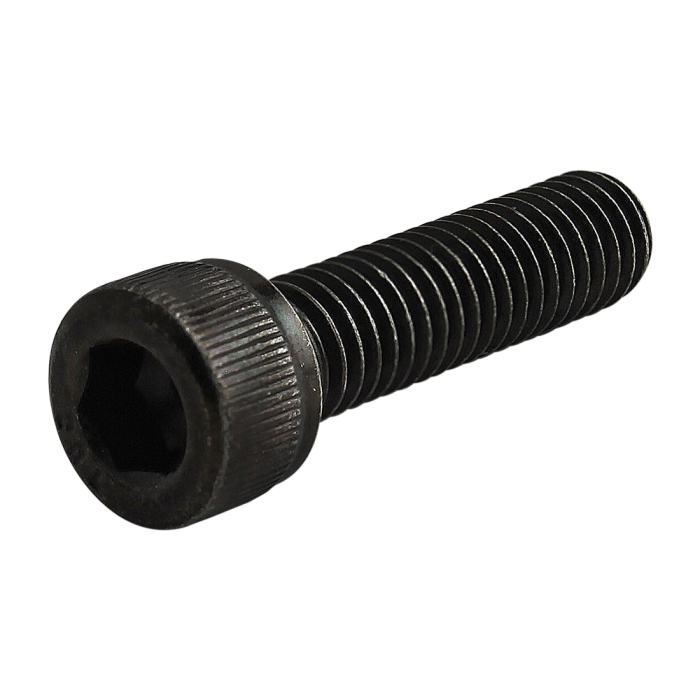

3056

Product Specs

• Product Details
  •

    Series	Fractional
    Material	Steel
    Finish	Zinc
    Color	Black
    A	0.308"
    B	5/32
    C	0.188"
    D (Length)	0.750"
    E (Thread)	10-32
    Thread Length	Full Thread
    Weight	0.008000
