15 Series 4 Hole - Detent Hinge
15 Series 4 Hole - Detent Hinge

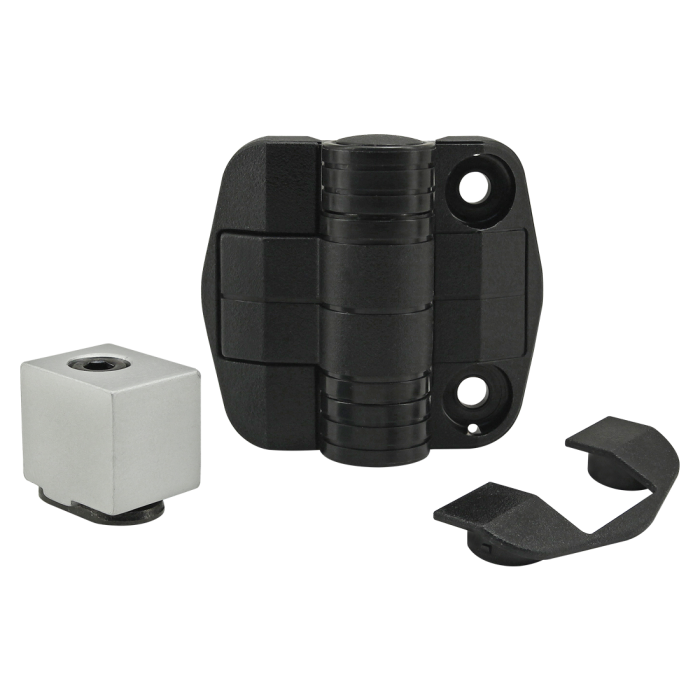

The 4 hole - detent hinge is commonly used to connect plastic panels and doors to T-slot profiles. It holds doors open at 120 or 170 degrees and is especially useful in horizontal-lifting applications, as it provides hands-free access. It includes snap-on covers that hide the hardware to mount to a panel or profile as well as a detent hinge stopper and its mounting hardware. Important Caution: This hinge is not suitable for connecting multiple T-slot profiles.
The 4 hole - detent hinge is commonly used to connect plastic panels and doors to T-slot profiles. It holds doors open at 120 or 170 degrees and is especially useful in horizontal-lifting applications, as it provides hands-free access. It includes snap-on covers that hide the hardware to mount to a panel or profile as well as a detent hinge stopper and its mounting hardware. Important Caution: This hinge is not suitable for connecting multiple T-slot profiles.
Total Price
................................................................................................................................| Series | 15 Series |
| Material | Acetal with Stainless Steel Ball/Spring Detent & Aluminum Panel Block |
| Process | Injection Molded and Extruded |
| Alloy | 6063-T6 |
| Finish | Plastic & Anodize |
| Color | Black |
| A | 1.339" |
| B | 1.957" |
| C | 1.339" |
| D | 1.122" |
| E | .677" |
| F | .205" |
| G | .358" |
| H | .350" |
| J | 1.122" |
| K | 2.047" |
| Weight | 0.137000 |
The 4 hole - detent hinge is commonly used to connect plastic panels and doors to T-slot profiles. It holds doors open at 120 or 170 degrees and is especially useful in horizontal-lifting applications, as it provides hands-free access. It includes snap-on covers that hide the hardware to mount to a panel or profile as well as a detent hinge stopper and its mounting hardware. Important Caution: This hinge is not suitable for connecting multiple T-slot profiles.
Per Leaf Mount to T-slot
| Series | Part Number | Qty | Description |
|---|---|---|---|
 | 3487 | 2 | Bolt Assembly: 10-32 x .500" Black BHSCS and Standard Slide-In T-Nut - Black Zinc |
Per Leaf Mount to Panel LTE .250" / 6mm
| Series | Part Number | Qty | Description |
|---|---|---|---|
| 3488 | 2 | Bolt Assembly: 10-32 x .625" Black BHSCS with Washer and Hex Nut - Black Zinc |
Product Specs
- Product Details
-
Series 15 Series Material Acetal with Stainless Steel Ball/Spring Detent & Aluminum Panel Block Process Injection Molded and Extruded Alloy 6063-T6 Finish Plastic & Anodize Color Black A 1.339" B 1.957" C 1.339" D 1.122" E .677" F .205" G .358" H .350" J 1.122" K 2.047" Weight 0.137000
-
- Description
The 4 hole - detent hinge is commonly used to connect plastic panels and doors to T-slot profiles. It holds doors open at 120 or 170 degrees and is especially useful in horizontal-lifting applications, as it provides hands-free access. It includes snap-on covers that hide the hardware to mount to a panel or profile as well as a detent hinge stopper and its mounting hardware. Important Caution: This hinge is not suitable for connecting multiple T-slot profiles.
-
Sugg. Hardware
Per Leaf Mount to T-slot
Series Part Number Qty Description 3487 2 Bolt Assembly: 10-32 x .500" Black BHSCS and Standard Slide-In T-Nut - Black Zinc Per Leaf Mount to Panel LTE .250" / 6mm
Series Part Number Qty Description 3488 2 Bolt Assembly: 10-32 x .625" Black BHSCS with Washer and Hex Nut - Black Zinc
