2884

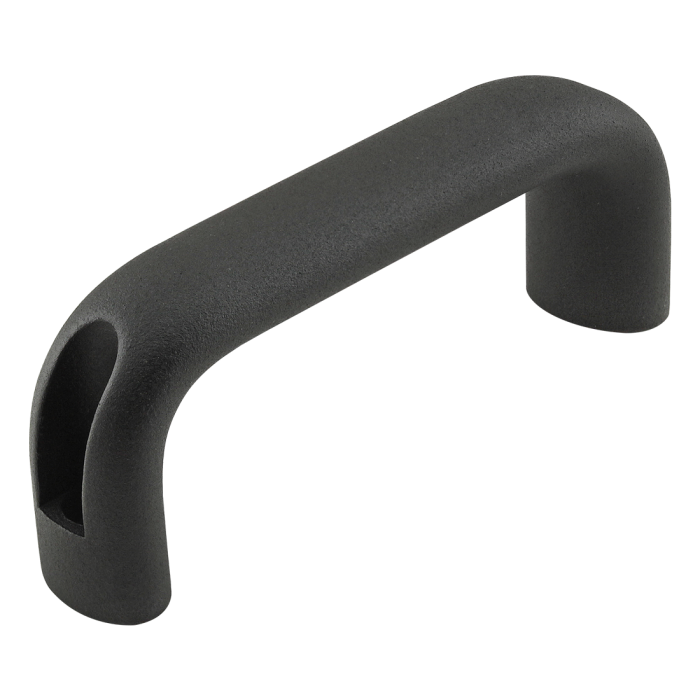

10 & 15 Series Aluminum Door Handle
10 & 15 Series Aluminum Door Handle
The aluminum door handle has a rigid design that creates a smooth shape and durable finish. It is corrosion-resistant, lending itself to both indoor and outdoor applications. It is available in black or natural mill finish and mounts directly to a T-slot profile.
| ESD Safe | No |
| Series | 10 Series, 15 Series |
| Material | Aluminum |
| Finish | Textured Powder Coat |
| Color | Black |
| Process | Extruded |
| A | 4.570" |
| B | 1.020" |
| C | 1/4 |
| D | 2.090" |
| E | 3.858" |
| F | 5.275" |
| Weight | 0.354000 |
The aluminum door handle has a rigid design that creates a smooth shape and durable finish. It is corrosion-resistant, lending itself to both indoor and outdoor applications. It is available in black or natural mill finish and mounts directly to a T-slot profile.
Mount to T-Slot
| Series | Part Number | Qty | Description |
|---|---|---|---|
 | 3067 | 2 | 1/4-20 x .625" Socket Head Cap Screw (SHCS) |
 | 3064 | 2 | 1/4-20 x .750" Socket Head Cap Screw (SHCS) |
| 3382 | 2 | 1/4-20 Slide-in Economy T-Nut - Centered Thread |
Product Specs
- Product Details
-
ESD Safe No Series 10 Series, 15 Series Material Aluminum Finish Textured Powder Coat Color Black Process Extruded A 4.570" B 1.020" C 1/4 D 2.090" E 3.858" F 5.275" Weight 0.354000
-
- Description
The aluminum door handle has a rigid design that creates a smooth shape and durable finish. It is corrosion-resistant, lending itself to both indoor and outdoor applications. It is available in black or natural mill finish and mounts directly to a T-slot profile.
- Sugg. Hardware
-
