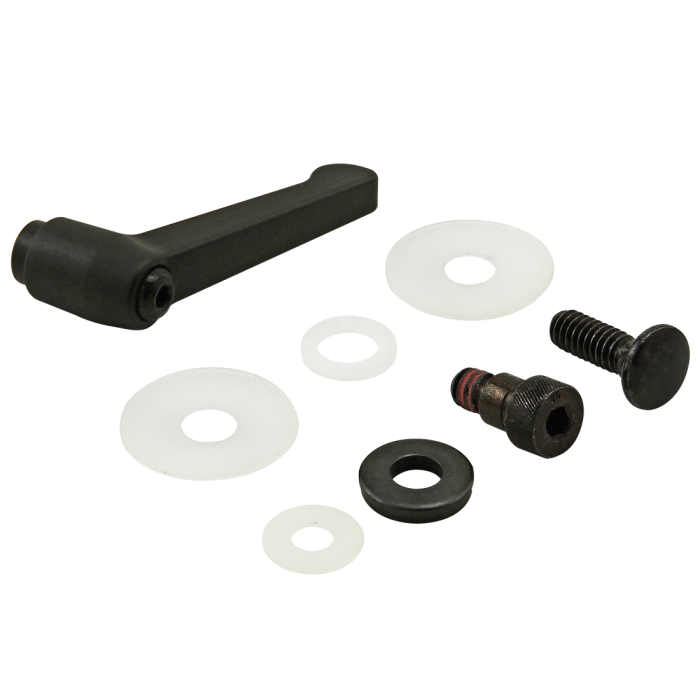

10 Series - "L" Handle Kit - Dynamic Pivot
10 Series - "L" Handle Kit - Dynamic Pivot
The "L" handle kit adds an adjustable stop to a dynamic pivot by securing it into a semi-permanent position and adds a grip to aid with adjustments. All mounting hardware is included.
| ESD Safe | No |
| Series | 10 Series |
| Material | Nylon 66 |
| Process | Injection Molded |
| Finish | Matte |
| Color | Black |
| A | 1.650" |
| B | 2.041" |
| C | 2.070" |
| D | 1.550" |
| E | .500" |
| F | .540" |
| G | .138" |
| H | 1.000" |
| Weight | 0.069000 |
The "L" handle kit adds an adjustable stop to a dynamic pivot by securing it into a semi-permanent position and adds a grip to aid with adjustments. All mounting hardware is included.
** In accordance with GDPR requirements, in order to download CAD files you will need to sign in to your PartCommunity account below, after clicking Generate. A partCommunity account is separate from your 80/20 account. If you do not have a PartCommunity account, you will need to create a free account.
Product Specs
- Product Details
-
ESD Safe No Series 10 Series Material Nylon 66 Process Injection Molded Finish Matte Color Black A 1.650" B 2.041" C 2.070" D 1.550" E .500" F .540" G .138" H 1.000" Weight 0.069000
-
- Description
The "L" handle kit adds an adjustable stop to a dynamic pivot by securing it into a semi-permanent position and adds a grip to aid with adjustments. All mounting hardware is included.
-
