2717
Leveling Casters
Leveling Casters

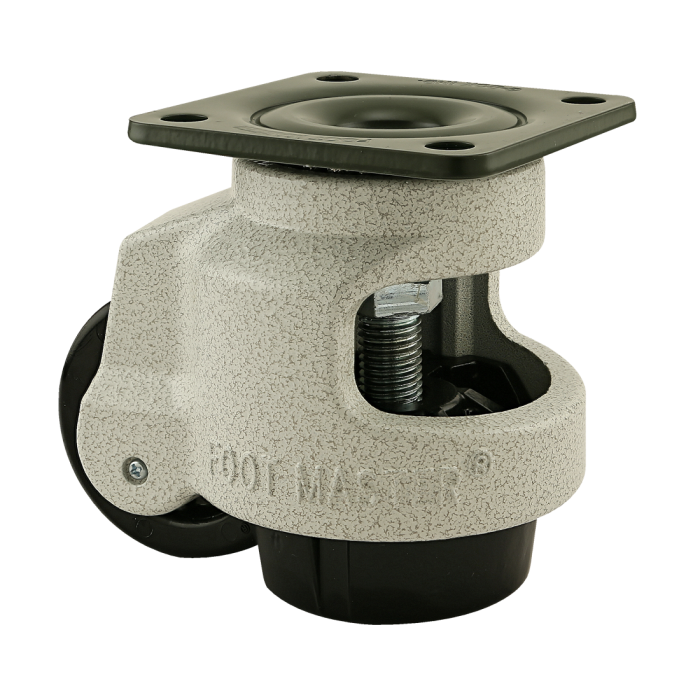

The leveling caster is a foot that incorporates both leveling features and mobility with one component. It is commonly mounted to the end or side of a T-slot profile with a base plate. The leveling caster is available in four sizes. It is ideal for large machine and automation frames.
Note: Center bar not available on part number 2717.
The leveling caster is a foot that incorporates both leveling features and mobility with one component. It is commonly mounted to the end or side of a T-slot profile with a base plate. The leveling caster is available in four sizes. It is ideal for large machine and automation frames.
Note: Center bar not available on part number 2717.
| ESD Safe | No |
| Series | Fractional, Metric |
| Material | Die Cast Aluminum / Plastic Nylon (Nylon 6) |
| Finish | Powder Coat Over Zinc |
| Color | Light Gray / Black |
| A | 1.220" (31.00mm) |
| B | .433" (11.00mm) |
| C | 2.756" (70.00mm) |
| D | 3.740" (95.00mm) |
| E | 4.724" (119.90mm) |
| F | 3.563" (90.50mm) |
| G | 4.250" / 4.875" (107.95mm / 123.83mm) |
| Load Capacity | 2200.00 lb (1000.00 kg) |
| Weight | 4.607000 |
The leveling caster is a foot that incorporates both leveling features and mobility with one component. It is commonly mounted to the end or side of a T-slot profile with a base plate. The leveling caster is available in four sizes. It is ideal for large machine and automation frames.
Note: Center bar not available on part number 2717.
Mount to Base Plate
| Series | Part Number | Qty | Description |
|---|---|---|---|
 | 3125 | 4 | 3/8-16 x .750" Socket Head Cap Screw (SHCS) |
 | 2409 | 1 | 15 Series Leveling Caster Base Plate |
 | 40-2409 | 1 | 40 Series Leveling Caster Base Plate |
 | 13-1520 | 4 | M10 x 20.00mm Socket Head Cap Screw (SHCS) |
Product Specs
- Product Details
-
ESD Safe No Series Fractional, Metric Material Die Cast Aluminum / Plastic Nylon (Nylon 6) Finish Powder Coat Over Zinc Color Light Gray / Black A 1.220" (31.00mm) B .433" (11.00mm) C 2.756" (70.00mm) D 3.740" (95.00mm) E 4.724" (119.90mm) F 3.563" (90.50mm) G 4.250" / 4.875" (107.95mm / 123.83mm) Load Capacity 2200.00 lb (1000.00 kg) Weight 4.607000
-
- Description
The leveling caster is a foot that incorporates both leveling features and mobility with one component. It is commonly mounted to the end or side of a T-slot profile with a base plate. The leveling caster is available in four sizes. It is ideal for large machine and automation frames.
Note: Center bar not available on part number 2717.
- Sugg. Hardware
-
