25-4195

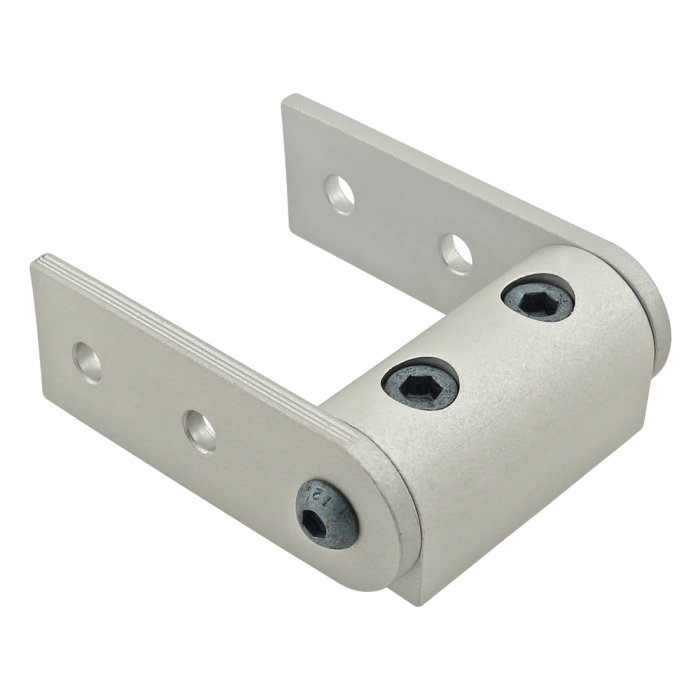

25 Series Universal Standard Structural Pivot Assembly with Dual Straight Arms
25 Series Universal Standard Structural Pivot Assembly with Dual Straight Arms
The standard structural pivot assembly with dual straight arms comes preassembled with the pivot arms connected to the nub and includes the hardware to connect the nub to the mounting profile. It consists of one 0 degree, 90 degree or universal structural pivot nub and two straight structural pivot arms.
The standard structural pivot assembly with dual straight arms comes preassembled with the pivot arms connected to the nub and includes the hardware to connect the nub to the mounting profile. It consists of one 0 degree, 90 degree or universal structural pivot nub and two straight structural pivot arms.
....................................................................................................................................................................................................................................................
Total Price
$19.20| Series | 25 Series |
| Material | Aluminum |
| Grade | 6105-T5 |
| Process | Milled |
| Finish | Anodize |
| Color | Clear |
| Nub (Qty.) | 25-4186 (1) |
| Arm (Qty.) | 25-4196 (2) |
| A | 50.00mm |
| B | 75.00mm |
| C | 64.30mm |
| D | 31.88mm |
| E | 25.00mm |
| F | 31.88mm |
| Weight | 0.286200 |
The standard structural pivot assembly with dual straight arms comes preassembled with the pivot arms connected to the nub and includes the hardware to connect the nub to the mounting profile. It consists of one 0 degree, 90 degree or universal structural pivot nub and two straight structural pivot arms.
Arm to Nub
| Series | Part Number | Qty | Description | Select Qty / Add To Cart |
|---|---|---|---|---|
 | 13-6312 | 2 | M6 x 12.00mm Button Head Socket Cap Screw (BHSCS) |
Nub to T-Slot
| Series | Part Number | Qty | Description | Select Qty / Add To Cart |
|---|---|---|---|---|
| 75-3415 | 1 Or 2 | Bolt Assembly: M6 x 25.00mm Blue SHCS with Slide-In Economy T-Nut - Centered Thread - Bright Zinc |
Arm to T-Slot
| Series | Part Number | Qty | Description | Select Qty / Add To Cart |
|---|---|---|---|---|
| 75-3404 | 4 | Bolt Assembly: M6 x 10.00mm Blue BHSCS with Slide-In Economy T-Nut - Centered Thread - Bright Zinc |
** In accordance with GDPR requirements, in order to download CAD files you will need to sign in to your PartSolutions account below. If you do not have one, you will need to create a free account.
Product Specs
- Product Details
-
Series 25 Series Material Aluminum Grade 6105-T5 Process Milled Finish Anodize Color Clear Nub (Qty.) 25-4186 (1) Arm (Qty.) 25-4196 (2) A 50.00mm B 75.00mm C 64.30mm D 31.88mm E 25.00mm F 31.88mm Weight 0.286200
-
- Description
The standard structural pivot assembly with dual straight arms comes preassembled with the pivot arms connected to the nub and includes the hardware to connect the nub to the mounting profile. It consists of one 0 degree, 90 degree or universal structural pivot nub and two straight structural pivot arms.
-
Incl. Hardware
Arm to Nub
Series Part Number Qty Description Select Qty / Add To Cart 13-6312 2 M6 x 12.00mm Button Head Socket Cap Screw (BHSCS)
Nub to T-Slot
Series Part Number Qty Description Select Qty / Add To Cart 75-3415 1 Or 2 Bolt Assembly: M6 x 25.00mm Blue SHCS with Slide-In Economy T-Nut - Centered Thread - Bright Zinc
-
Sugg. Hardware
Arm to T-Slot
Series Part Number Qty Description Select Qty / Add To Cart 75-3404 4 Bolt Assembly: M6 x 10.00mm Blue BHSCS with Slide-In Economy T-Nut - Centered Thread - Bright Zinc
- How To
- CAD Files
-
** In accordance with GDPR requirements, in order to download CAD files you will need to sign in to your PartSolutions account below. If you do not have one, you will need to create a free account.
-
