()25-4156

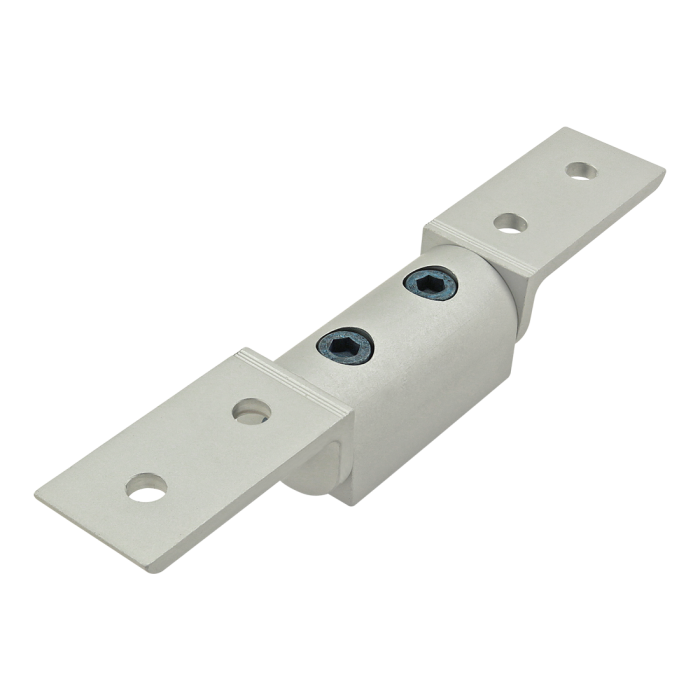

25 Series Universal Standard Structural Pivot Assembly with Dual "L" Arms
25 Series Universal Standard Structural Pivot Assembly with Dual "L" Arms
The standard structural pivot assembly with dual "L" arms comes preassembled with the pivot arms connected to the nub and includes the hardware to connect the nub to the mounting profile. It consists of one 0 degree, 90 degree or universal structural pivot nub and two "L" structural pivot arms.
Total Price
................................................................................................................................Series | 25 Series |
Material | Aluminum |
Grade | 6063-T6 |
Process | Milled |
Finish | Anodize |
Color | Clear |
Nub (Qty.) | 25-4186 (1) |
Arm (Qty.) | 25-4149 (2) |
A | 150.00mm |
B | 12.50mm |
C | 25.00mm |
D | 25.00mm |
E | 25.00mm |
F | 31.88mm |
Weight | 0.279600 |

The standard structural pivot assembly with dual "L" arms comes preassembled with the pivot arms connected to the nub and includes the hardware to connect the nub to the mounting profile. It consists of one 0 degree, 90 degree or universal structural pivot nub and two "L" structural pivot arms.
Arm to Nub
Series | Part Number | Qty | Description |
---|---|---|---|
![]() | 13-6312 | 2 | M6 x 12.00mm Button Head Socket Cap Screw (BHSCS) |
Nub to T-Slot
Series | Part Number | Qty | Description |
---|---|---|---|
![]() | 75-3415 | 1 Or 2 | Bolt Assembly: M6 x 25.00mm Blue SHCS with Slide-In Economy T-Nut - Centered Thread - Bright Zinc |
Arm to T-Slot
Series | Part Number | Qty | Description |
---|---|---|---|
![]() | 75-3404 | 4 | Bolt Assembly: M6 x 10.00mm Blue BHSCS with Slide-In Economy T-Nut - Centered Thread - Bright Zinc |
Product Specs
- Product Details
-
Series 25 Series Material Aluminum Grade 6063-T6 Process Milled Finish Anodize Color Clear Nub (Qty.) 25-4186 (1) Arm (Qty.) 25-4149 (2) A 150.00mm B 12.50mm C 25.00mm D 25.00mm E 25.00mm F 31.88mm Weight 0.279600
-
- Description
The standard structural pivot assembly with dual "L" arms comes preassembled with the pivot arms connected to the nub and includes the hardware to connect the nub to the mounting profile. It consists of one 0 degree, 90 degree or universal structural pivot nub and two "L" structural pivot arms.
-
Incl. Hardware
Arm to Nub
Series Part Number Qty Description 13-6312 2 M6 x 12.00mm Button Head Socket Cap Screw (BHSCS)
Nub to T-Slot
Series Part Number Qty Description 75-3415 1 Or 2 Bolt Assembly: M6 x 25.00mm Blue SHCS with Slide-In Economy T-Nut - Centered Thread - Bright Zinc
-
Sugg. Hardware
Arm to T-Slot
Series Part Number Qty Description 75-3404 4 Bolt Assembly: M6 x 10.00mm Blue BHSCS with Slide-In Economy T-Nut - Centered Thread - Bright Zinc
