25-4153

Product Specs

• Product Details
  •

    ESD Safe	Yes
    Series	25 Series
    Material	Aluminum
    Grade	6063-T6
    Process	Milled
    Finish	Anodize
    Color	Clear
    Nub (Qty.)	25-4187 (1)
    Arm (Qty.)	25-4149 (2)
    A	125.00mm
    B	12.50mm
    C	25.00mm
    D	25.00mm
    E	25.00mm
    F	31.88mm
    Weight	0.185800

• Description

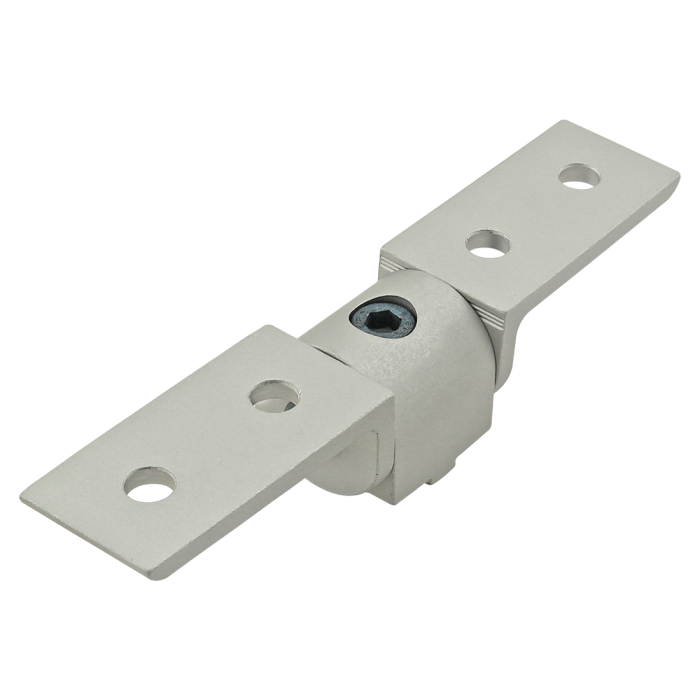

  • The standard structural pivot assembly with dual "L" arms comes preassembled with the pivot arms connected to the nub and includes the hardware to connect the nub to the mounting profile. It consists of one 0 degree, 90 degree or universal structural pivot nub and two "L" structural pivot arms.

• Incl. Hardware

  • Arm to Nub

    Series	Part Number	Qty	Description
    	13-6312	2	M6 x 12.00mm Button Head Socket Cap Screw (BHSCS)

    Nub to T-Slot

    Series	Part Number	Qty	Description
    	75-3415	1 Or 2	Bolt Assembly: M6 x 25.00mm Blue SHCS with Slide-In Economy T-Nut - Centered Thread - Bright Zinc

• Sugg. Hardware

  • Arm to T-Slot

    Series	Part Number	Qty	Description
    	75-3404	4	Bolt Assembly: M6 x 10.00mm Blue BHSCS with Slide-In Economy T-Nut - Centered Thread - Bright Zinc
