25-2211-Black

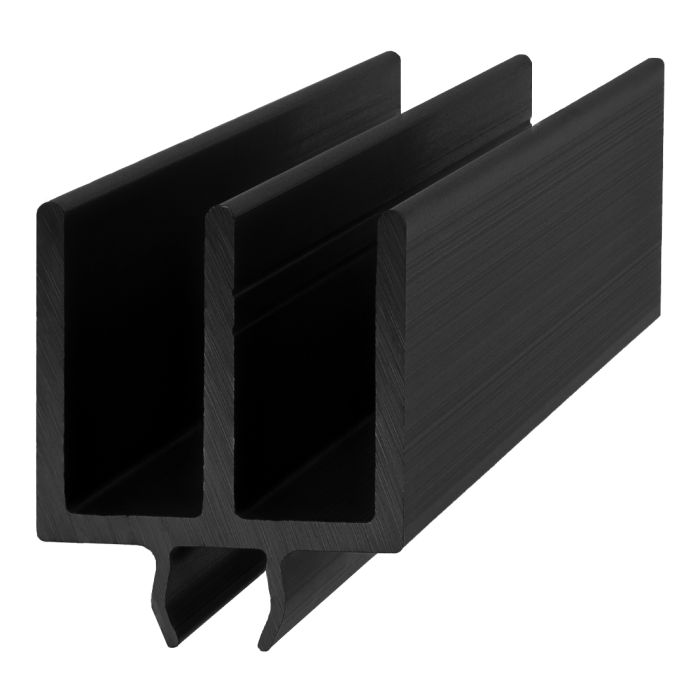

25 Series Upper Door Slide Track
25 Series Upper Door Slide Track
The upper door slide tracks snap into a T-slot with no required hardware. This track is typically used with the lower door slide track to allow panels to be inserted after the frame is assembled. The upper door slide track is 120” (3.048M) and can be cut to length with a standard machining service.
....................................................................................................................................................................................................................................................
Price Per Inch
$0.69
*surcharge of $2.79 per cut
This item requires a longer lead time. Please see Shipping Schedule for "Products Requiring Additional Anodizing".
In stock
Total Price
................................................................................................................................| Series | 25 Series |
| Material | Aluminum |
| Grade | 6005A – T61 |
| Process | Extruded |
| Finish | Anodize |
| Color | Black |
| A | 1.57mm |
| B | 17.48mm |
| C | 7.14mm |
| D | 19.05mm |
| Length | per millimeter |
| Weight | 0.016000 |
| Max Length (inches) | 120.000000 |
The upper door slide tracks snap into a T-slot with no required hardware. This track is typically used with the lower door slide track to allow panels to be inserted after the frame is assembled. The upper door slide track is 120” (3.048M) and can be cut to length with a standard machining service.
** In accordance with GDPR requirements, in order to download CAD files you will need to sign in to your PartCommunity account below, after clicking Generate. A partCommunity account is separate from your 80/20 account. If you do not have a PartCommunity account, you will need to create a free account.
Product Specs
- Product Details
-
Series 25 Series Material Aluminum Grade 6005A – T61 Process Extruded Finish Anodize Color Black A 1.57mm B 17.48mm C 7.14mm D 19.05mm Length per millimeter Weight 0.016000 Max Length (inches) 120.000000
-
- Description
The upper door slide tracks snap into a T-slot with no required hardware. This track is typically used with the lower door slide track to allow panels to be inserted after the frame is assembled. The upper door slide track is 120” (3.048M) and can be cut to length with a standard machining service.
