Product Specs

• Product Details
  •

    Series	25 Series
    Material	Aluminum
    Grade	6105-T5
    Finish	Anodize
    Color	Black
    Drop Lock	2°
    Moment of Inertia - IX	0.3030 cm^4
    Moment of Inertia - IY	1.3003 cm^4
    Surface Area	2.022 Sq cm
    Yield Strength	241.1 N/ Sq. mm
    Modulus of Elasticity	70,326.5 N/Sq. mm
    Weight lbs	0.0305 per inch
    Weight	0.030500

• Description

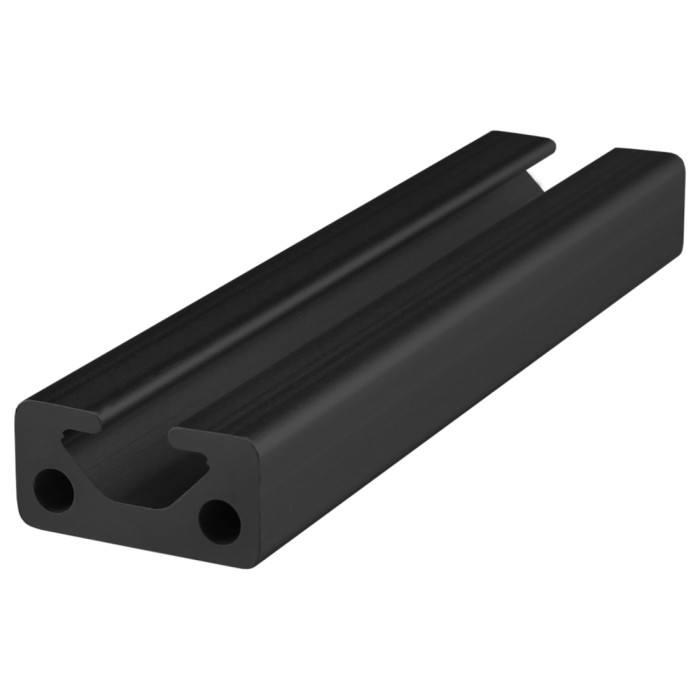

  • 25-2514-Black-FB is a 25mm x 12.5mm metric 25 series rectangular T-slot profile with one open T-slot on one 25mm face. The profile is smooth, which makes it resistant to dirt and debris buildup while also being easy to clean. The 25-2514-Black-FB profile is compatible with 25 series fasteners. It is a thinner profile that connects easily to flat surfaces and works well as a supporting structure or spacer for mounting accessories such as handles, door tracks, rails, valves or sensors.
