10 Series 12-Hole Pressure Manifold Feed Plate
10 Series 12-Hole Pressure Manifold Feed Plate

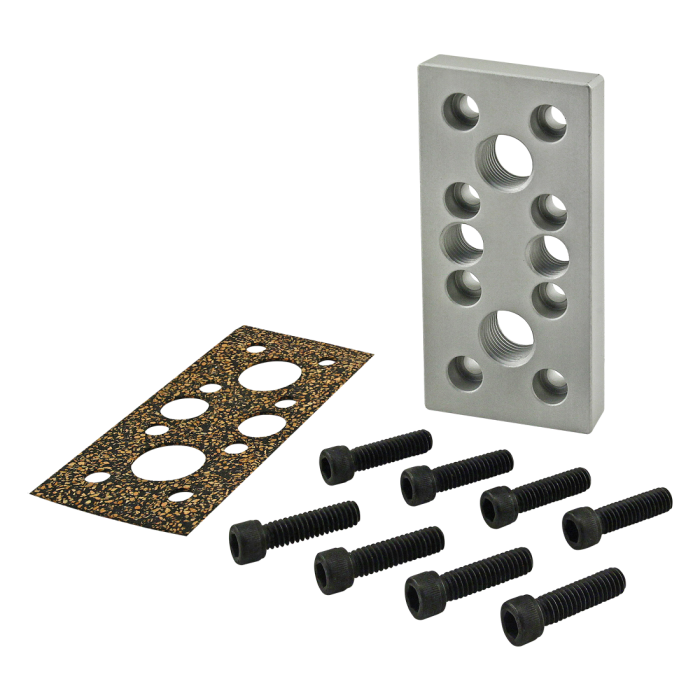

The 12-hole pressure manifold feed plate is commonly used when adding a pressurized substance to a T-slot profile. It has a tapped hole and mounts on the profile end to seal the connection where the pressurized substance is released. The suggested mounting hardware and gasket are included. The maximum allowable pressure is 150 psi (1034.21 kPa).
The 12-hole pressure manifold feed plate is commonly used when adding a pressurized substance to a T-slot profile. It has a tapped hole and mounts on the profile end to seal the connection where the pressurized substance is released. The suggested mounting hardware and gasket are included. The maximum allowable pressure is 150 psi (1034.21 kPa).
Total Price
................................................................................................................................Series | 10 Series |
Material | Aluminum |
Grade | 6063-T6 |
Finish | Anodize |
Color | Clear |
Process | Milled |
A | 1.000" |
B | .500" |
C | .500" |
D | 2.000" |
E | .500" |
F | 1.000" |
G | 2.000" |
H (Thread) | 3/8" NPT |
J (Thread) | 1/4" NPT |
K (Thread) | 1/4 SHCS |
L | 1.000" |
M | .490" |
N | 4.000" |
Weight | 0.320000 |

The 12-hole pressure manifold feed plate is commonly used when adding a pressurized substance to a T-slot profile. It has a tapped hole and mounts on the profile end to seal the connection where the pressurized substance is released. The suggested mounting hardware and gasket are included. The maximum allowable pressure is 150 psi (1034.21 kPa).
Mount to T-Slot
Series | Part Number | Qty | Description |
---|---|---|---|
![]() | 3071 | 8 | 1/4-20 x 1.000" Socket Head Cap Screw (SHCS) |
Product Specs
- Product Details
-
Series 10 Series Material Aluminum Grade 6063-T6 Finish Anodize Color Clear Process Milled A 1.000" B .500" C .500" D 2.000" E .500" F 1.000" G 2.000" H (Thread) 3/8" NPT J (Thread) 1/4" NPT K (Thread) 1/4 SHCS L 1.000" M .490" N 4.000" Weight 0.320000
-
- Description
The 12-hole pressure manifold feed plate is commonly used when adding a pressurized substance to a T-slot profile. It has a tapped hole and mounts on the profile end to seal the connection where the pressurized substance is released. The suggested mounting hardware and gasket are included. The maximum allowable pressure is 150 psi (1034.21 kPa).
-
Incl. Hardware
Mount to T-Slot
Series Part Number Qty Description 3071 8 1/4-20 x 1.000" Socket Head Cap Screw (SHCS)
