2173

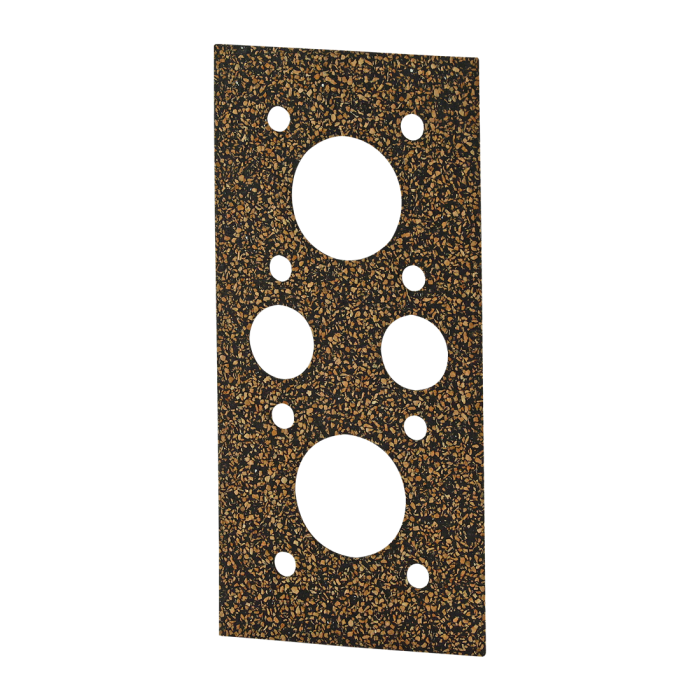

10 Series 12-Hole Gasket for Pressure Manifold
10 Series 12-Hole Gasket for Pressure Manifold
The 12-hole gasket for pressure manifold is made of a cork and synthetic rubber combination used to prevent leakage. It is commonly used with manifold plates to completely seal a profile end or create a tight seal where a substance is released.
| ESD Safe | No |
| Series | 10 Series |
| Material | Velumoid |
| Color | Brown |
| A | 1.000" |
| B | .500" |
| C | .500" |
| D | 2.000" |
| E | .500" |
| F | 1.000" |
| G | 2.000" |
| H | .750" |
| J | .530" |
| K | .265" |
| L | 1.000" |
| M | .030" |
| N | 4.000" |
| Weight | 0.006000 |
The 12-hole gasket for pressure manifold is made of a cork and synthetic rubber combination used to prevent leakage. It is commonly used with manifold plates to completely seal a profile end or create a tight seal where a substance is released.
Product Specs
- Product Details
-
ESD Safe No Series 10 Series Material Velumoid Color Brown A 1.000" B .500" C .500" D 2.000" E .500" F 1.000" G 2.000" H .750" J .530" K .265" L 1.000" M .030" N 4.000" Weight 0.006000
-
- Description
The 12-hole gasket for pressure manifold is made of a cork and synthetic rubber combination used to prevent leakage. It is commonly used with manifold plates to completely seal a profile end or create a tight seal where a substance is released.
-
