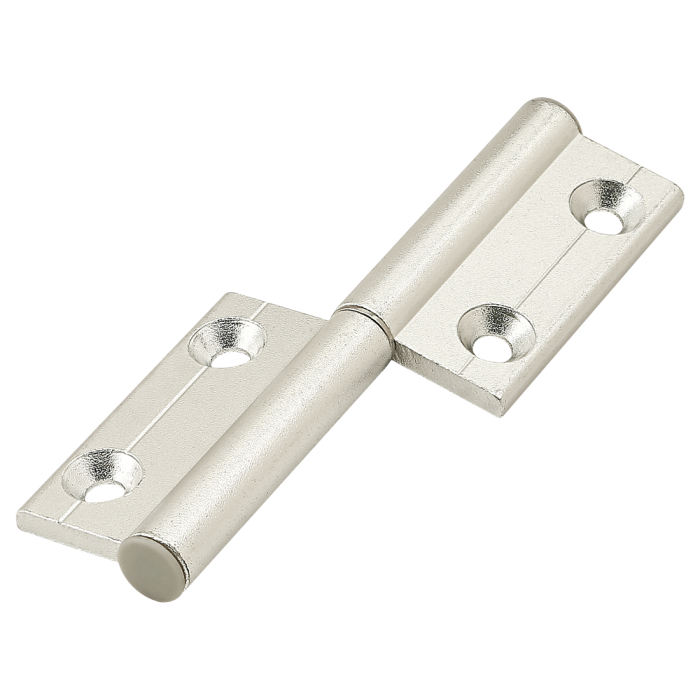

20 Series 4 Hole - Concealed Hinge
20 Series 4 Hole - Concealed Hinge
The 4 hole - concealed hinge allows you to design doors with hidden hinges when the door is closed. The hinge mounts to the inside of the frame, which makes enclosures more secure; they are not able to be dismantled when the door is shut.
| ESD Safe | No |
| Series | 20 Series |
| Material | Aluminum |
| Grade | 6060 |
| Finish | Anodize |
| Color | Clear |
| Process | Extruded |
| A | 3.976" |
| B | 1.969" |
| C | 1.181" |
| D | .209" |
| E | .571" |
| F | .866" |
| G | 1.732" |
| H | .394" |
| J | .157" |
| Weight | 0.033000 |
The 4 hole - concealed hinge allows you to design doors with hidden hinges when the door is closed. The hinge mounts to the inside of the frame, which makes enclosures more secure; they are not able to be dismantled when the door is shut.
Mount to T-Slot
| Series | Part Number | Qty | Description |
|---|---|---|---|
 | 11-5708 | 4 | M5 x 8.00mm Flat Head Socket Cap Screw (FHSCS) |
| 14122 | 4 | M5 Slide-in Economy T-Nut Block |
Product Specs
- Product Details
-
ESD Safe No Series 20 Series Material Aluminum Grade 6060 Finish Anodize Color Clear Process Extruded A 3.976" B 1.969" C 1.181" D .209" E .571" F .866" G 1.732" H .394" J .157" Weight 0.033000
-
- Description
- The 4 hole - concealed hinge allows you to design doors with hidden hinges when the door is closed. The hinge mounts to the inside of the frame, which makes enclosures more secure; they are not able to be dismantled when the door is shut.
- Sugg. Hardware
-
