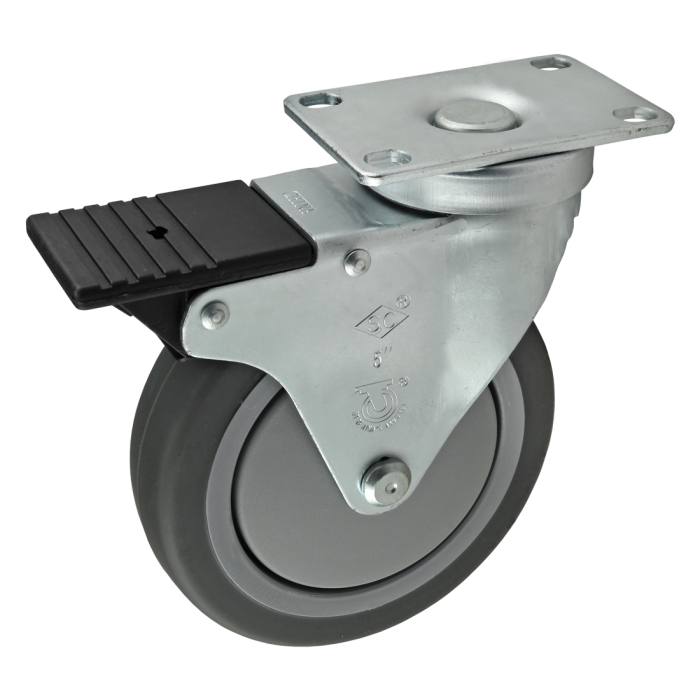

Flanged Mount Swivel Caster: 5.00"
Flanged Mount Swivel Caster: 5.00"
The flange mount swivel caster is a foot that adds mobility to an application and commonly mounts to the T-slot profile end or side using a base plate. The swivel enables easy movement and pivot turns. The top mount brake locks both the wheel and swivel motion. This is ideal for use in industrial settings such as mobile carts and material handling solutions.
The flange mount swivel caster is a foot that adds mobility to an application and commonly mounts to the T-slot profile end or side using a base plate. The swivel enables easy movement and pivot turns. The top mount brake locks both the wheel and swivel motion. This is ideal for use in industrial settings such as mobile carts and material handling solutions.
| ESD Safe | No |
| Series | Fractional, Metric, Ready Tube |
| Material | Steel / Soft Rubber |
| Finish | Zinc |
| Color | Black |
| Brake | Front |
| A | 3.625" (92.08mm) |
| B | 3.000" (76.20mm) |
| C | 2.875" (73.03mm) |
| D | 2.375" (60.33mm) |
| E | 1.750" (44.45mm) |
| F | .328" (8.33mm) |
| G | 6.250" (155.58mm) |
| H | 4.625" (117.48mm) |
| J | 5.000" (127.00mm) |
| Load Height | 6.250" (158.45mm) |
| Load Capacity | 300.00 lb (136.08 kg) |
| Weight | 2.202000 |
The flange mount swivel caster is a foot that adds mobility to an application and commonly mounts to the T-slot profile end or side using a base plate. The swivel enables easy movement and pivot turns. The top mount brake locks both the wheel and swivel motion. This is ideal for use in industrial settings such as mobile carts and material handling solutions.
Mount to Base Plate
| Series | Part Number | Qty | Description |
|---|---|---|---|
 | 3110 | 4 | 5/16-18 x .625" Socket Head Cap Screw (SHCS) |
 | 13-8520 | 4 | M8 x 20.00mm Socket Head Cap Screw (SHCS) |
Mount to RT Profile
| Series | Part Number | Qty | Description |
|---|---|---|---|
 | 3960 | 2 | Bolt Assembly: 5/16-18 x 2.000" Bright Flanged Hex Head Bolt and Flanged Hex Nut - Bright Zinc |
Product Specs
- Product Details
-
ESD Safe No Series Fractional, Metric, Ready Tube Material Steel / Soft Rubber Finish Zinc Color Black Brake Front A 3.625" (92.08mm) B 3.000" (76.20mm) C 2.875" (73.03mm) D 2.375" (60.33mm) E 1.750" (44.45mm) F .328" (8.33mm) G 6.250" (155.58mm) H 4.625" (117.48mm) J 5.000" (127.00mm) Load Height 6.250" (158.45mm) Load Capacity 300.00 lb (136.08 kg) Weight 2.202000
-
- Description
The flange mount swivel caster is a foot that adds mobility to an application and commonly mounts to the T-slot profile end or side using a base plate. The swivel enables easy movement and pivot turns. The top mount brake locks both the wheel and swivel motion. This is ideal for use in industrial settings such as mobile carts and material handling solutions.
