15, 30, 40, 45 Series Adjustable Monitor Mount Replacement
15, 30, 40, 45 Series Adjustable Monitor Mount Replacement

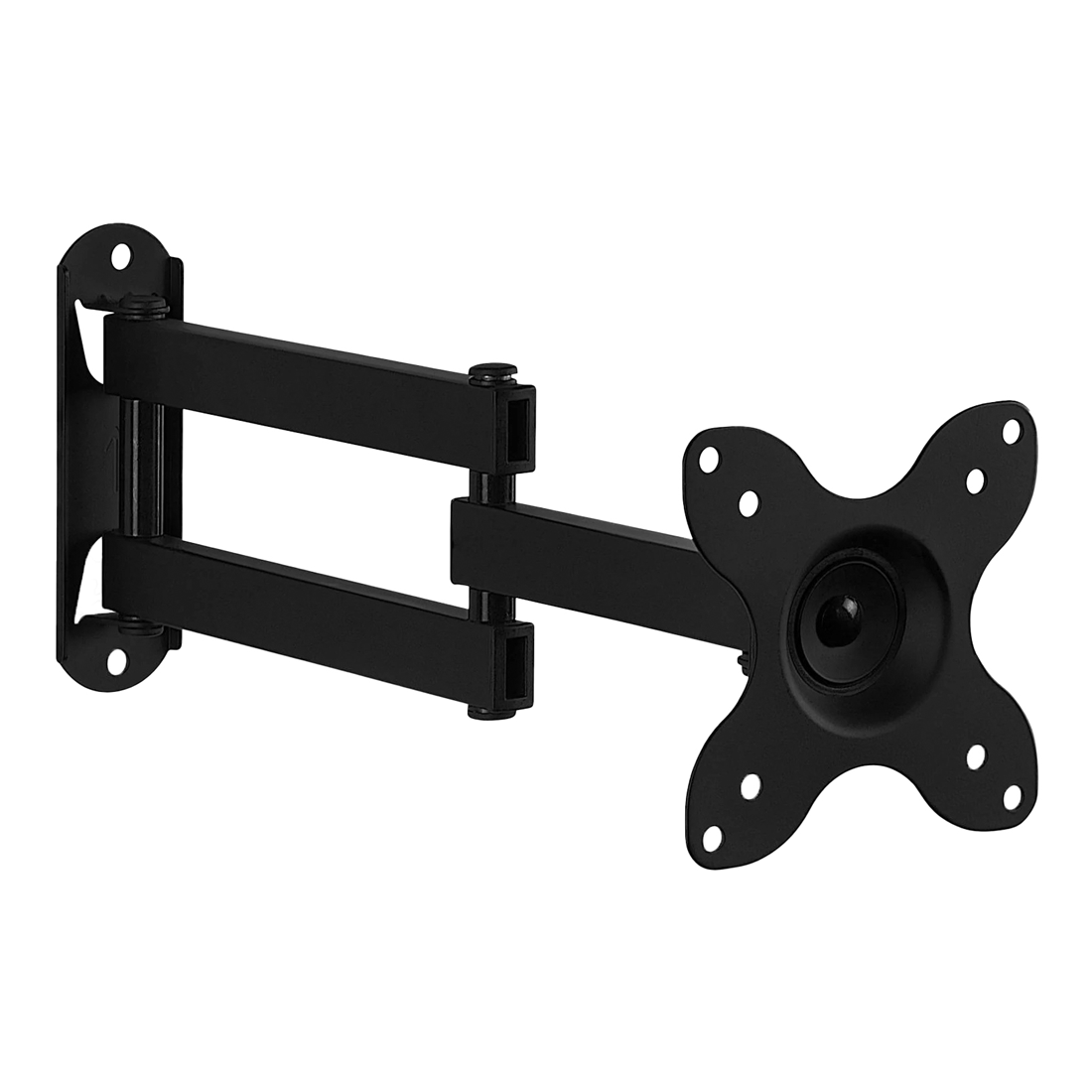

The Adjustable Monitor Mount is compatible with the Video Electronics Standards Association (VESA) mounting patterns of 75mm x 75mm through 100mm x 100mm, which includes most displays up to 34”. The mount supports adjustments in three dimensions; it can rotate 360 degrees, tilt ranging from 15 degrees upward to 15 degrees downward, and swivel ± 90 degrees. Additionally, it can be extended from the mounting surface a minimum distance of 1.75 inches (44.45mm) to a maximum of 15.00 inches (381mm). The mount can safely hold up to 33 pounds (14.97 kg).
The Adjustable Monitor Mount is compatible with the Video Electronics Standards Association (VESA) mounting patterns of 75mm x 75mm through 100mm x 100mm, which includes most displays up to 34”. The mount supports adjustments in three dimensions; it can rotate 360 degrees, tilt ranging from 15 degrees upward to 15 degrees downward, and swivel ± 90 degrees. Additionally, it can be extended from the mounting surface a minimum distance of 1.75 inches (44.45mm) to a maximum of 15.00 inches (381mm). The mount can safely hold up to 33 pounds (14.97 kg).
| ESD Safe | No |
| Series | 15 Series, 30 Series, 40 Series, 45 Series |
| Material | Steel |
| Color | Black |
| A | 4.600" (116.84mm) |
| B | 3.937" (100.00mm) |
| C | 2.953" (75.00mm) |
| D | 4.600" (116.84mm) |
| E | .250" (6.35mm) |
| F | 15.000" (381.00mm) |
| G | 4.940" (125.48mm) |
| H | 7.600" (193.04mm) |
| J | .688" (17.48mm) |
| K | 1.750" (44.45mm) |
| L | .066" (1.68mm) |
| M | 6.000" (152.40mm) |
| N | 5.116" (129.95mm) |
| P | .875" (22.22mm) |
| Q | .300" (7.62mm) |
| R | .175" (4.44mm) |
| S | .300" (7.62mm) |
| Weight | 2.363000 |
The Adjustable Monitor Mount is compatible with the Video Electronics Standards Association (VESA) mounting patterns of 75mm x 75mm through 100mm x 100mm, which includes most displays up to 34”. The mount supports adjustments in three dimensions; it can rotate 360 degrees, tilt ranging from 15 degrees upward to 15 degrees downward, and swivel ± 90 degrees. Additionally, it can be extended from the mounting surface a minimum distance of 1.75 inches (44.45mm) to a maximum of 15.00 inches (381mm). The mount can safely hold up to 33 pounds (14.97 kg).
Mount to T-Slot
| Series | Part Number | Qty | Description |
|---|---|---|---|
 | 3319 | 2 | Bolt Assembly: 5/16-18 x .500" Black FBHSCS and Slide-In Economy T-Nut - Offset Thread - Black Zinc |
 | 75-3421 | 2 | Bolt Assembly: M8 x 12.00mm Blue BHSCS with Slide-In Economy T-Nut - Offset Thread - Bright Zinc |
 | 13-8312 | 2 | M8 x 12.00mm Button Head Socket Cap Screw (BHSCS) |
| 30-3796 | 2 | M8 Slide-in Economy T-Nut - Centered Thread |
| 13-6042 | 2 | 8.51mm ID Washer |
 | 13-8312 | 2 | M8 x 12.00mm Button Head Socket Cap Screw (BHSCS) |
| 13132 | 2 | 45 Series M8 Standard Drop-in T-Nut |
** In accordance with GDPR requirements, in order to download CAD files you will need to sign in to your PartCommunity account below, after clicking Generate. A partCommunity account is separate from your 80/20 account. If you do not have a PartCommunity account, you will need to create a free account.
Product Specs
- Product Details
-
ESD Safe No Series 15 Series, 30 Series, 40 Series, 45 Series Material Steel Color Black A 4.600" (116.84mm) B 3.937" (100.00mm) C 2.953" (75.00mm) D 4.600" (116.84mm) E .250" (6.35mm) F 15.000" (381.00mm) G 4.940" (125.48mm) H 7.600" (193.04mm) J .688" (17.48mm) K 1.750" (44.45mm) L .066" (1.68mm) M 6.000" (152.40mm) N 5.116" (129.95mm) P .875" (22.22mm) Q .300" (7.62mm) R .175" (4.44mm) S .300" (7.62mm) Weight 2.363000
-
- Description
- The Adjustable Monitor Mount is compatible with the Video Electronics Standards Association (VESA) mounting patterns of 75mm x 75mm through 100mm x 100mm, which includes most displays up to 34”. The mount supports adjustments in three dimensions; it can rotate 360 degrees, tilt ranging from 15 degrees upward to 15 degrees downward, and swivel ± 90 degrees. Additionally, it can be extended from the mounting surface a minimum distance of 1.75 inches (44.45mm) to a maximum of 15.00 inches (381mm). The mount can safely hold up to 33 pounds (14.97 kg).
-
Sugg. Hardware
Mount to T-Slot
Series Part Number Qty Description 3319 2 Bolt Assembly: 5/16-18 x .500" Black FBHSCS and Slide-In Economy T-Nut - Offset Thread - Black Zinc 75-3421 2 Bolt Assembly: M8 x 12.00mm Blue BHSCS with Slide-In Economy T-Nut - Offset Thread - Bright Zinc 13-8312 2 M8 x 12.00mm Button Head Socket Cap Screw (BHSCS) 30-3796 2 M8 Slide-in Economy T-Nut - Centered Thread
13-6042 2 8.51mm ID Washer
13-8312 2 M8 x 12.00mm Button Head Socket Cap Screw (BHSCS) 13132 2 45 Series M8 Standard Drop-in T-Nut
-
