15 Series Velcro® Latch
The Velcro® latch consists of Velcro® material bonded to a clear anodized aluminum body. It includes a fastener hook pad key that twists into a T-slot profile, perfect for instances where profiles are captivated. It is recommended for displays, enclosures, and light-duty doors where easy access is required. All of the mounting hardware is included.
| ESD Safe | No |
| Color | No |
| Series | 15 Series |
| Housing Material | Aluminum |
| Grade | 6063-T6 |
| Pad Material | Velcro® |

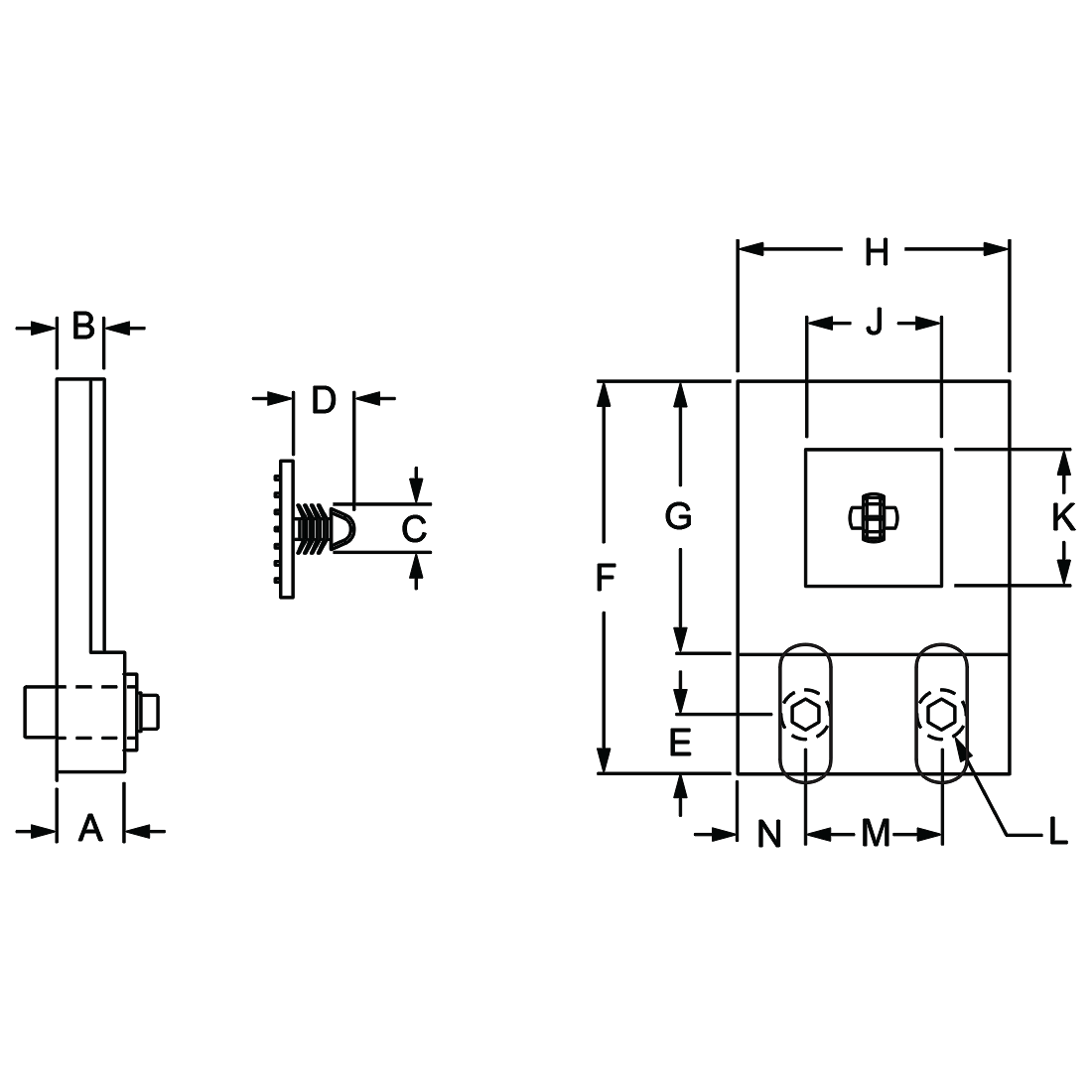

| A | .500" |
| B | .335" |
| C | .350" |
| D | .448" |
| E | .437" |
| F | 2.875" |
| G | 2.000" |
| H | 1.000" |
| J | 1.000" |
| K | 1.000" |
| L | 1/4-20 |
| M | 1.000" |
| N | .500" |
| Weight | 0.243000 |
The Velcro® latch consists of Velcro® material bonded to a clear anodized aluminum body. It includes a fastener hook pad key that twists into a T-slot profile, perfect for instances where profiles are captivated. It is recommended for displays, enclosures, and light-duty doors where easy access is required. All of the mounting hardware is included.
Velcro Latch to T-Slot
| Series | Part Number | Qty | Description |
|---|---|---|---|
 | 3382 | 2 | 1/4-20 Slide-in Economy T-Nut - Centered Thread |
| 3068 | 2 | 1/4-20 x .875" Socket Head Cap Screw (SHCS) |
Product Specs
- Product Details
-
ESD Safe No Color No Series 15 Series Housing Material Aluminum Grade 6063-T6 Pad Material Velcro® A .500" B .335" C .350" D .448" E .437" F 2.875" G 2.000" H 1.000" J 1.000" K 1.000" L 1/4-20 M 1.000" N .500" Weight 0.243000
-
- Description
- The Velcro® latch consists of Velcro® material bonded to a clear anodized aluminum body. It includes a fastener hook pad key that twists into a T-slot profile, perfect for instances where profiles are captivated. It is recommended for displays, enclosures, and light-duty doors where easy access is required. All of the mounting hardware is included.
- Incl. Hardware
-
