2077-Black

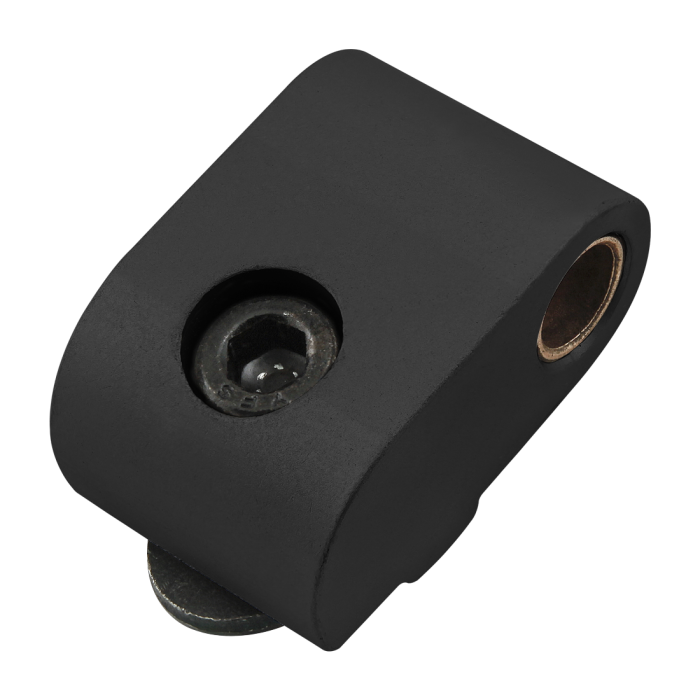

10 Series Standard Lift-Off Hinge - Mating Hub
10 Series Standard Lift-Off Hinge - Mating Hub
The standard lift-off hinge – mating hub is made of 6105-T5 anodized aluminum. Use with lift-off hinges to create assemblies. The standard lift-off hinge with mating hub should not be used to connect two long pin hubs. The mounting hardware is included. Additional Information: The gap distance between the two mating profiles is .063” (1.60mm).
The standard lift-off hinge – mating hub is made of 6105-T5 anodized aluminum. Use with lift-off hinges to create assemblies. The standard lift-off hinge with mating hub should not be used to connect two long pin hubs. The mounting hardware is included. Additional Information: The gap distance between the two mating profiles is .063” (1.60mm).
....................................................................................................................................................................................................................................................
Total Price
$7.61| Series | 10 Series |
| Material | Aluminum |
| Grade | 6105-T5 |
| Process | Milled |
| Finish | Anodize |
| Color | Black |
| A | .377" |
| B | 1.156" |
| C | .750" |
| D | .375" |
| E | 10-32 |
| F | .250" |
| G | .750" |
| H | .500" |
| J | .250" |
| K | .529" |
| Weight | 0.049000 |
The standard lift-off hinge – mating hub is made of 6105-T5 anodized aluminum. Use with lift-off hinges to create assemblies. The standard lift-off hinge with mating hub should not be used to connect two long pin hubs. The mounting hardware is included. Additional Information: The gap distance between the two mating profiles is .063” (1.60mm).
Mount to T-Slot
| Series | Part Number | Qty | Description | Select Qty / Add To Cart |
|---|---|---|---|---|
 | 3048 | 1 | 10-32 x .500" Socket Head Cap Screw (SHCS) | |
| 3276 | 1 | 10-32 Slide-in Economy T-Nut - Centered Thread |
** In accordance with GDPR requirements, in order to download CAD files you will need to sign in to your PartSolutions account below. If you do not have one, you will need to create a free account.
Product Specs
- Product Details
-
Series 10 Series Material Aluminum Grade 6105-T5 Process Milled Finish Anodize Color Black A .377" B 1.156" C .750" D .375" E 10-32 F .250" G .750" H .500" J .250" K .529" Weight 0.049000
-
- Description
The standard lift-off hinge – mating hub is made of 6105-T5 anodized aluminum. Use with lift-off hinges to create assemblies. The standard lift-off hinge with mating hub should not be used to connect two long pin hubs. The mounting hardware is included. Additional Information: The gap distance between the two mating profiles is .063” (1.60mm).
-
Incl. Hardware
Mount to T-Slot
Series Part Number Qty Description Select Qty / Add To Cart 3048 1 10-32 x .500" Socket Head Cap Screw (SHCS)
3276 1 10-32 Slide-in Economy T-Nut - Centered Thread
